ECONOMY FORZA SERIES 82 DRILL CLAMP

ECONOMY FORZA SERIES 82 DRILL CLAMP

The Series 82 Economy Drill Chuck is a lightweight, versatile tool designed to perform precise work on drills and threading machines.
Made from durable, high-quality materials, this vice offers great precision in holding parts.
Although it is light, its structure is robust and reliable, allowing it to be used in various industrial applications and mechanical workshops.
It shares the same parts with the Series 33, but with the key difference that the mouthpiece and the movable mouthpiece are a monobloc piece, which ensures greater rigidity and stability during use.
This vice is equipped with grooved ears that facilitate its attachment to the drill without the need for clamping flanges, thus optimizing preparation time.
In addition, it has a carriage that incorporates two 90º prisms and a step, which allows a more versatile clamping of the pieces, adapting to different shapes and sizes.
As an additional option, a rotating base can be included, providing greater flexibility and precision in the positioning of the pieces.
The drill table should be between T1 and T2 specifications for optimal performance.

Recommendations for use:
Make sure the drill table is between the T1 and T2 specifications for optimal performance.
Check the stability of the jaw before starting work to avoid unwanted movements.
Use the optional rotating base if you require greater flexibility in positioning parts.
For pieces with irregular shapes, take advantage of the 90º prisms on the carriage for a more secure hold.
Avoid forcing parts into the jaw to extend tool life.

Maintenance recommendations:
Regularly lubricate moving parts to prevent premature wear and ensure smooth operation.
Keep the jaw clean and free of debris that may interfere with its operation.
Periodically check screws and components to ensure they are tight and in good condition.

Bullet points

  • Monobloc structure: The mobile mouth and the mouthpiece in a single piece increase stability and precision during use.
  • Clamping versatility: Thanks to the carriage with 90º prisms and step, pieces of various shapes and sizes can be clamped.
  • Greater work efficiency: The ease of fixing to the drill without the need for ties saves time in preparation.
  • Guaranteed precision: The robust structure and innovative design ensure precise and reliable work, reducing errors.
ECONOMY FORZA SERIES 82 DRILL CLAMP reference list
manual ECONOMY FORZA SERIES 82 DRILL CLAMP Download

3D Documents and drawings You must register to access

Enter

ECONOMY FORZA SERIES 82 DRILL CLAMP reference list

Ref. Weight Price EDRAT (Width)XB (Maximum jaws range)TKD (Height)G (Length)ToT1T2With screwsT (Widht)ANDB (Maximum mouth distance) Sparepart Accessories Buy
82/100 8.5Kg 247,50 € 243281100404105TR20x49031,5241100133162M104024116
82/125 14.7Kg 291,50 € 274297.5125404,5116TR22x510241,5300125169195M144027160
82/150 19.6Kg 331,50 € 2752105150406160TR22x510252,5345150182210M144027190
82/85 4Kg 168,60 € 2226628525395TR18x48125,518885100124M8252295

Related products

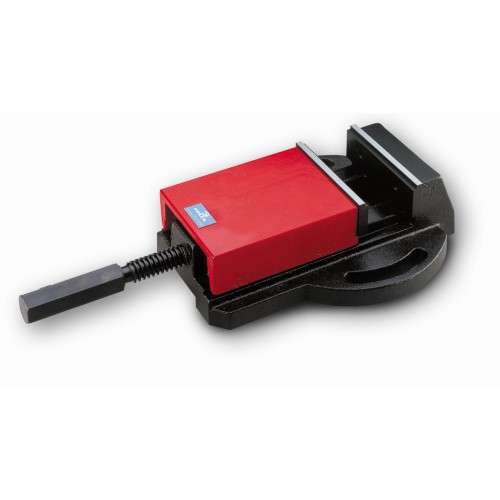

FORZA 33M SERIES DRILL CLAMP
