FORZA 33M SERIES DRILL CLAMP

FORZA 33M SERIES DRILL CLAMP

The 33M Series Drill Chuck is a professional tool designed to meet the demands of precision and durability in drilling and tapping work.
This vice is equipped with hard jaws that include a step, allowing for a firm and secure grip on workpieces, even under high pressure conditions.
Its spindle is protected to prevent damage, dirt accumulation and the risk of seizure, ensuring smooth and prolonged operation.
Additionally, the ribbed ears facilitate efficient tie-down, eliminating the need for zip ties, simplifying installation and use.
The vice is also compatible with a swivel base, allowing for easy and versatile angle adjustment to suit various operational needs.
This vice is ideal for any type of work that requires high precision and reliability in drills and threading machines, being an indispensable addition for workshops and factories looking to improve their productivity and precision.

Recommendations for use:
Be sure to clean the surface of the workpiece before placing it in the vice to prevent slipping.
Verify that the jaw is properly aligned with the drill table before beginning any operation.
Use the swivel base to adjust the working angle according to the specific needs of the project.
Do not exceed the recommended clamping capacity to avoid deformation or damage to the jaw.
Adjust the spindle gradually to ensure a firm grip without exceeding the necessary pressure.

Maintenance recommendations:
Regularly clean the spindle and jaw jaws to prevent dirt buildup that may interfere with their operation.
Lubricate the spindle and moving parts of the jaw periodically to ensure smooth movement and prevent seizure.
Inspect the grooved lugs and swivel base for wear or damage, making replacements or adjustments as necessary.

Bullet points

  • Robustness and durability: Thanks to the hard step jaws and protected spindle, the 33M Series Drill Chuck is designed to withstand demanding working conditions, ensuring long life without compromising precision.
  • Versatility: The ability to accept a swivel base and the ease of mooring without ties allow a wide range of applications, adapting to different configurations and types of work.
  • Increased Productivity: Efficient design that eliminates the need for clamping flanges and ease of adjustment provide significant time savings in jaw setup and operation.
  • Precision Assured: The firm grip provided by the stepped jaws and spindle protection ensure precise and consistent results with every use, which is crucial for jobs that require high accuracy.
FORZA 33M SERIES DRILL CLAMP reference list
manual FORZA 33M SERIES DRILL CLAMP Download

3D Documents and drawings You must register to access

Enter

FORZA 33M SERIES DRILL CLAMP reference list

Ref. Weight Price EDRClampsXB (Maximum jaws range)TLengthKA (Widht)H (Height)M (Length)T1T2With screwsANDB (Maximum mouth distance)FlangesA (Width) Sparepart Accessories Buy
33/100M 9Kg 315,00 € 243281125604116TR20x43109010566310133162M102411612560105
33/125M 16.2Kg 422,20 € 274297.5125604,5157TR22x539510212583395169195M142715712560125
33/150M 25.2Kg 472,60 € 2752105125606190TR22x547010215095470182210M142719012560150
33/65M 2.8Kg 154,00 € 192652.5-376TR14x320781654920786105M819761256065
33/85M 4.8Kg 201,90 € 222662-390TR18x4242818554242100124M822901256085

Related products

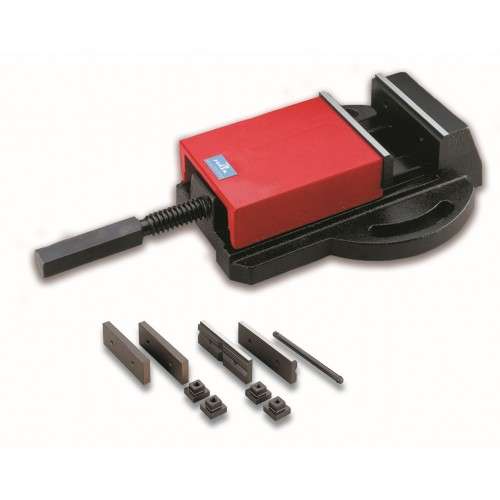

FORZA PROFESSIONAL DRILL CLAMP SERIES 33P

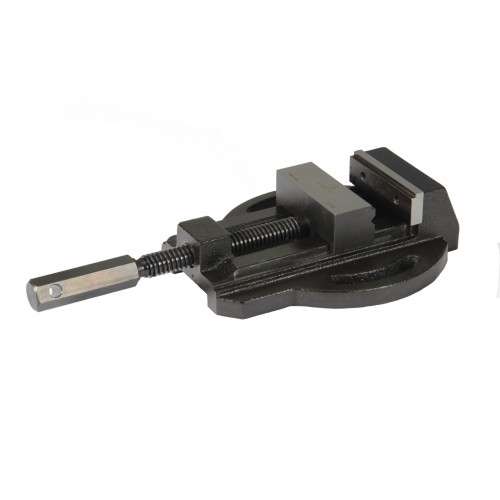

ECONOMY FORZA SERIES 82 DRILL CLAMP

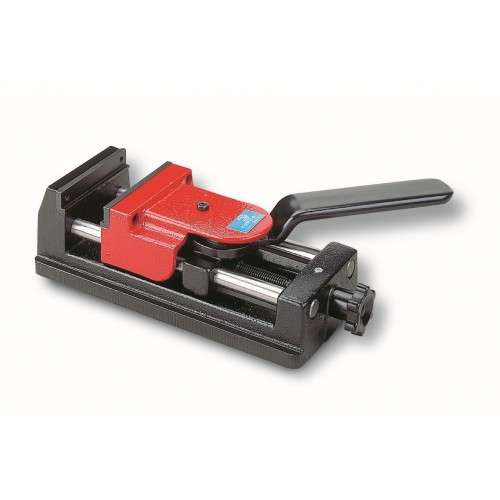

FORZA SERIES 38 FAST DRILL CLAMP

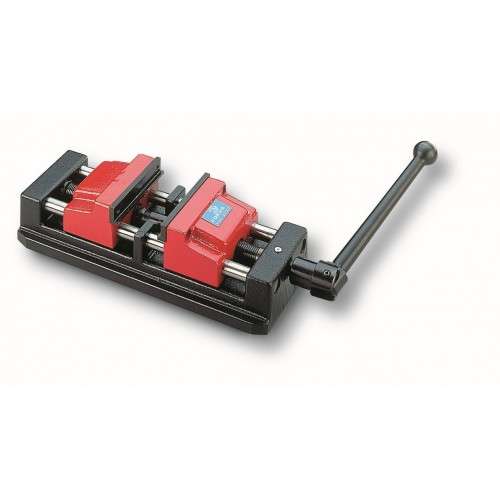

FORZA SERIES 37 SELF-CENTERING DRILL CLAMP

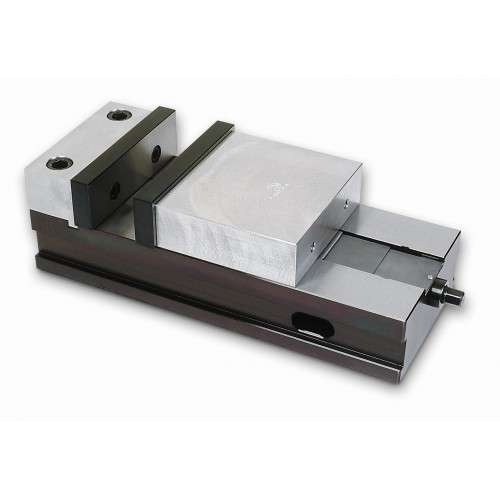

FORZA CLAMP FOR LARGE DRILLS AND THREADING MACHINES
