FORZA SERIES 37 SELF-CENTERING DRILL CLAMP

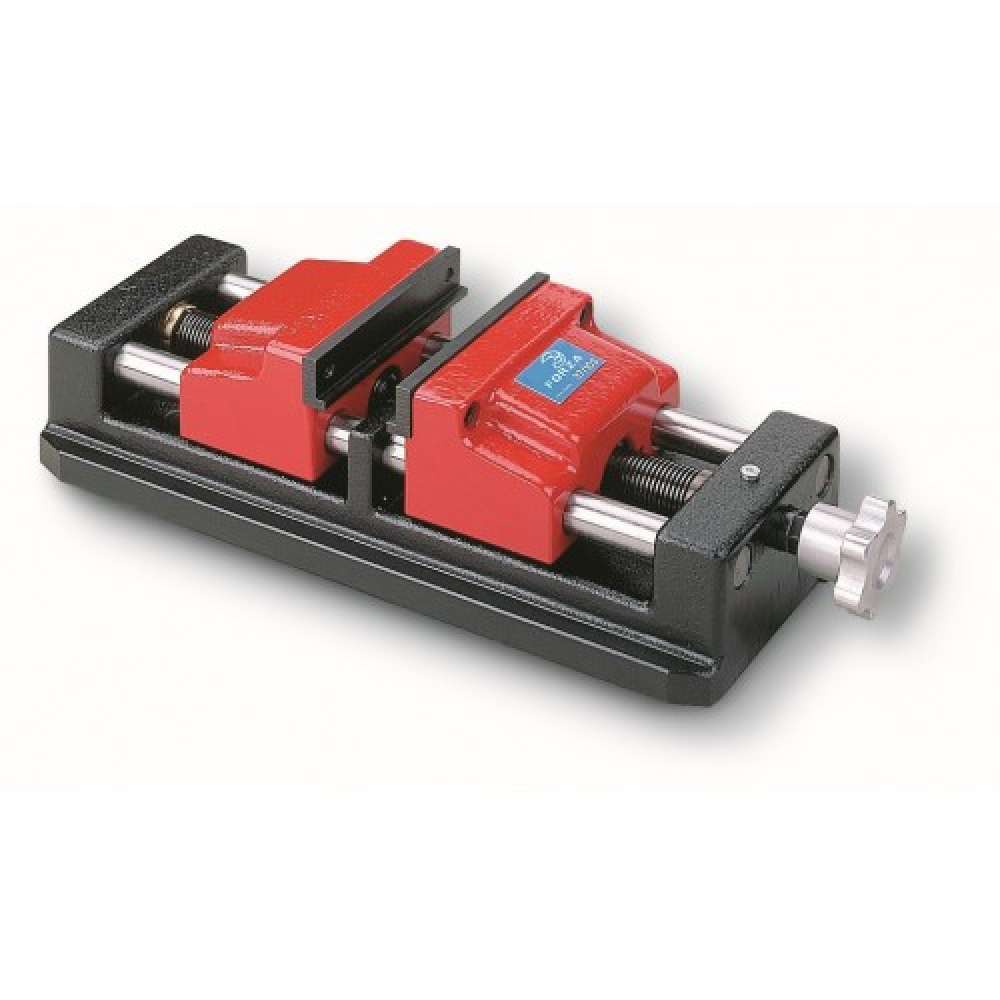

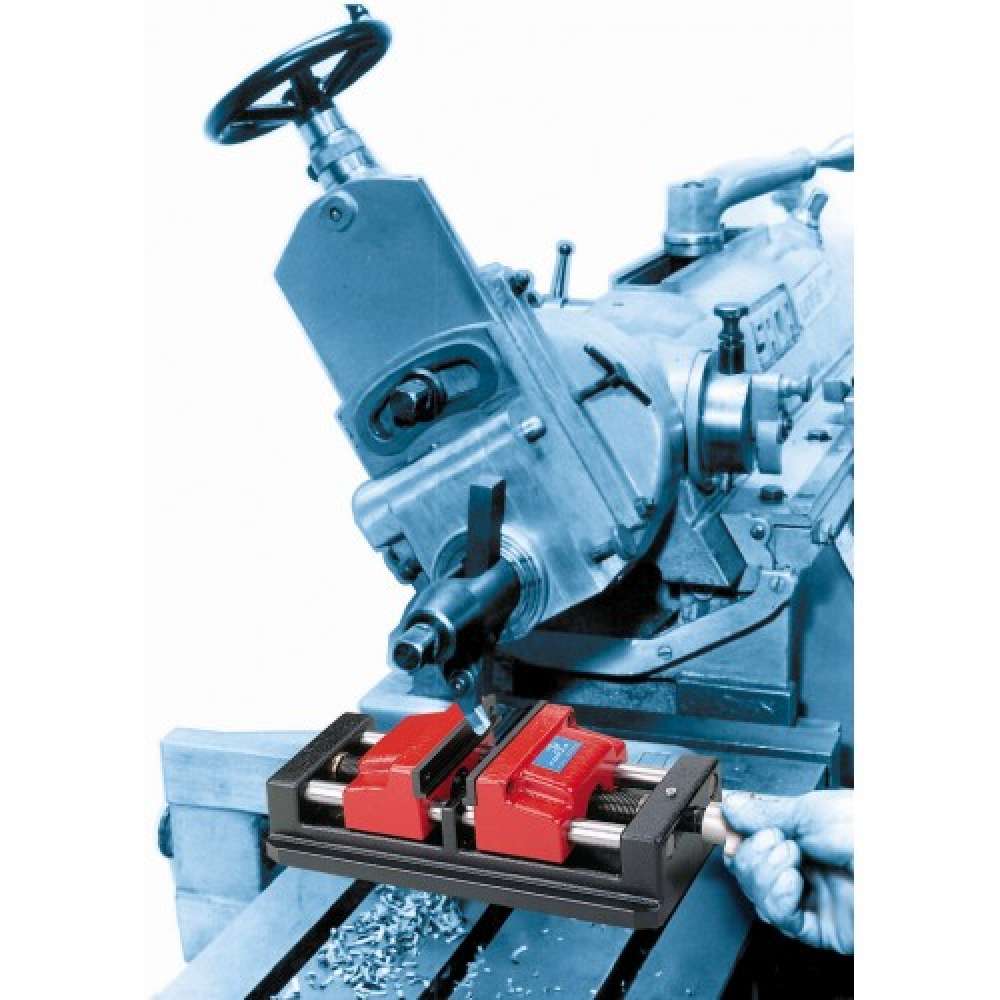

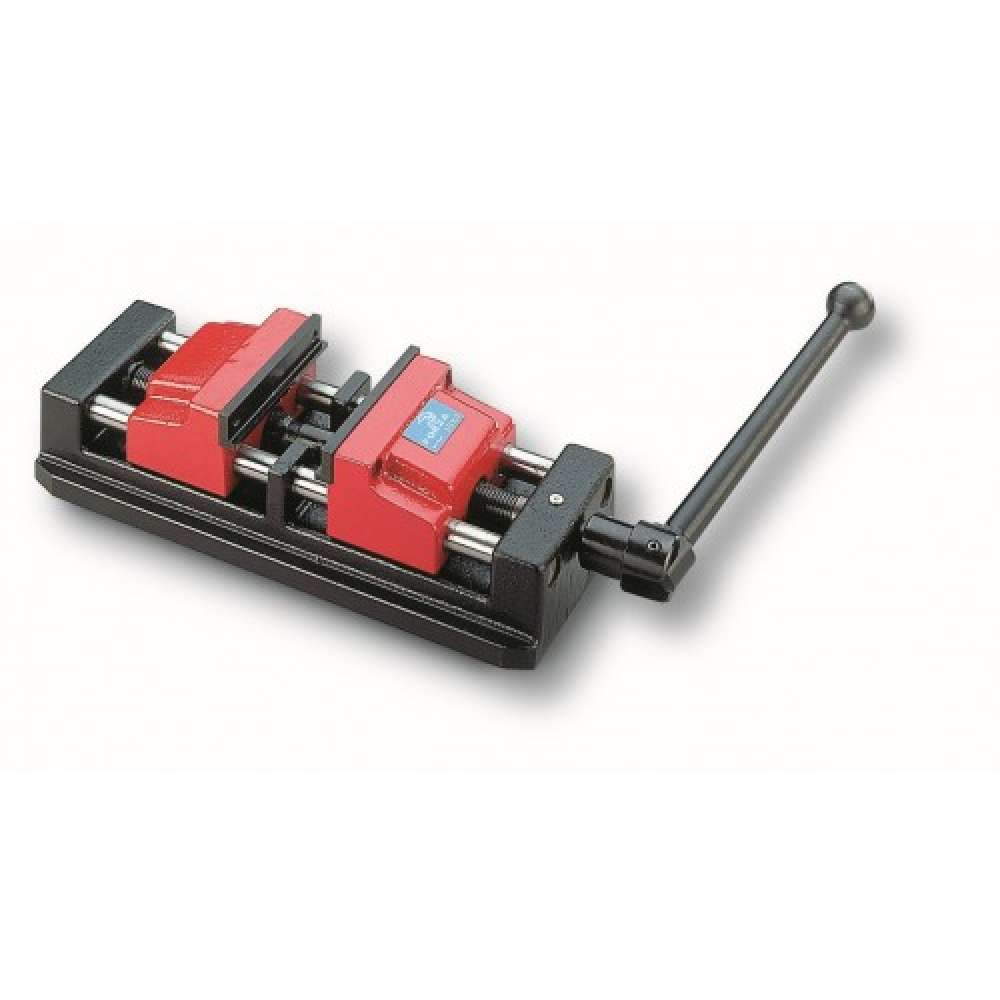

The Series 37 Self-Centering Drill Chuck is a precision tool designed specifically for use in drilling, tapping machines and small milling operations.
This vice stands out for its ability to automatically center parts, ensuring a firm and precise hold in the center, which is essential for high-quality work.
Made from heavy-duty materials, this vice is ideal for applications requiring consistent precision.
In addition, it comes equipped with two sets of soft jaws that allow a secure grip without damaging the piece, and step jaws that provide versatility in holding different shapes and sizes of materials.
The vice also supports the installation of an optional swivel base, increasing its functionality and versatility in various work environments.

Recommendations for use:
Make sure the jaw is securely fastened to the drill or router before starting work.
Use the soft jaws for delicate parts or surfaces that should not be damaged.
For irregular pieces, take advantage of the stepped jaws for a better grip.
If you use the optional swivel base, be sure to lock it properly before you begin drilling or routing.
Perform clamping tests with test pieces before proceeding with final work to ensure that the jaw is properly centered and tight.

Maintenance recommendations:
Periodically lubricate the moving parts of the jaw to ensure smooth movement and prevent premature wear.
Clean the jaw after each use, removing any remains of materials that may have been trapped in the mouths or guides of the jaw.
Regularly inspect jaws and other contact surfaces for wear or damage, replacing them if necessary to maintain clamping accuracy and security.

Bullet points

  • Accuracy in centering: The self-centering function ensures that parts are always aligned correctly, reducing errors and improving the quality of the final work.
  • Clamping versatility: The included step jaws and soft jaws allow you to work with a wide range of materials and shapes, adapting to various needs.
  • Reduction in adjustment time: Thanks to its self-centering design, the user can significantly reduce the time needed to align and clamp parts, which increases productivity.
  • Material Protection: Soft jaws provide a firm grip without damaging delicate surfaces, which is crucial in precision work where surface finish is important.
FORZA SERIES 37 SELF-CENTERING DRILL CLAMP reference list
manual FORZA SERIES 37 SELF-CENTERING DRILL CLAMP Download

3D Documents and drawings You must register to access

Enter

FORZA SERIES 37 SELF-CENTERING DRILL CLAMP reference list

See more
Ref. Weight Price HeightBaseOpeningHandleMouthAdjustment Sparepart Accessories Buy
37/103 11.9Kg 553,80 € 85-110Handle103Handle
37/103B 17.5Kg 783,40 € 853710398 110Handle103Handle
37/103BP 16.7Kg 795,60 € 853710398 110Knob103Knob
37/103P 11.6Kg 515,30 € 85- 110Knob103Knob
