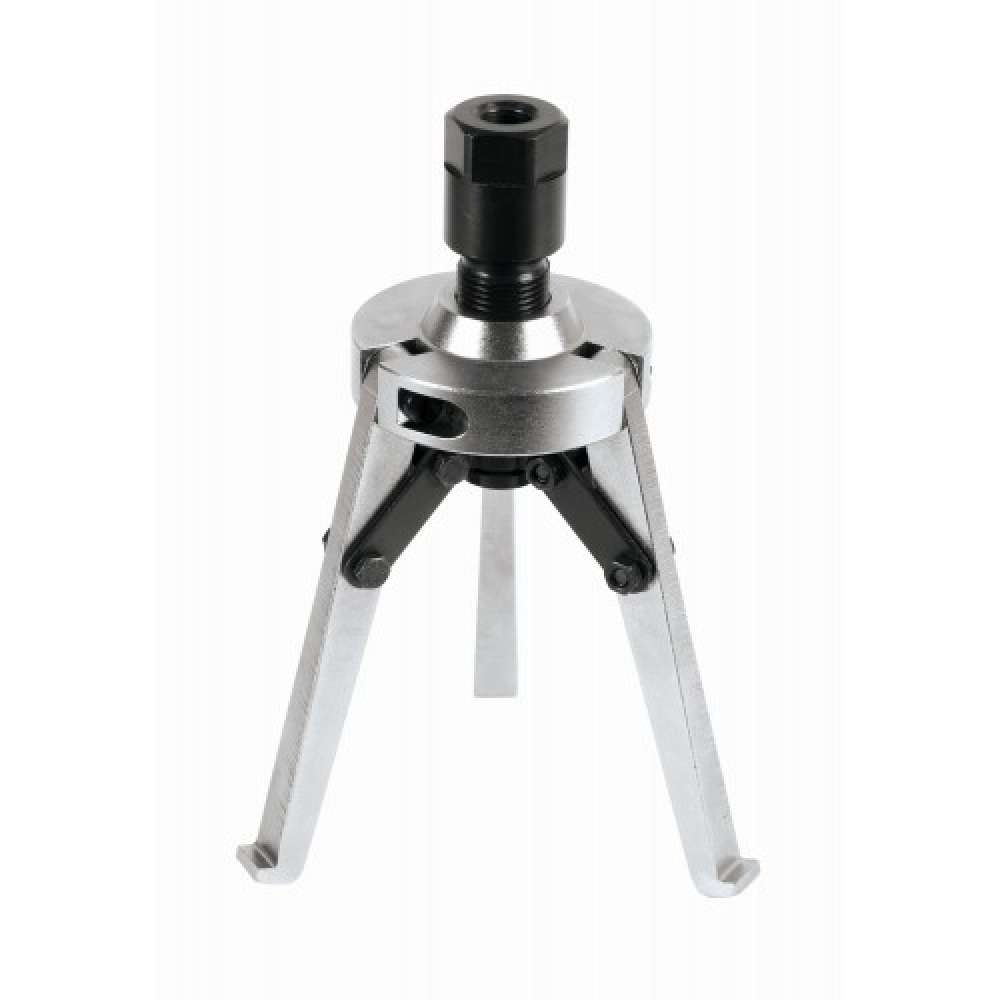

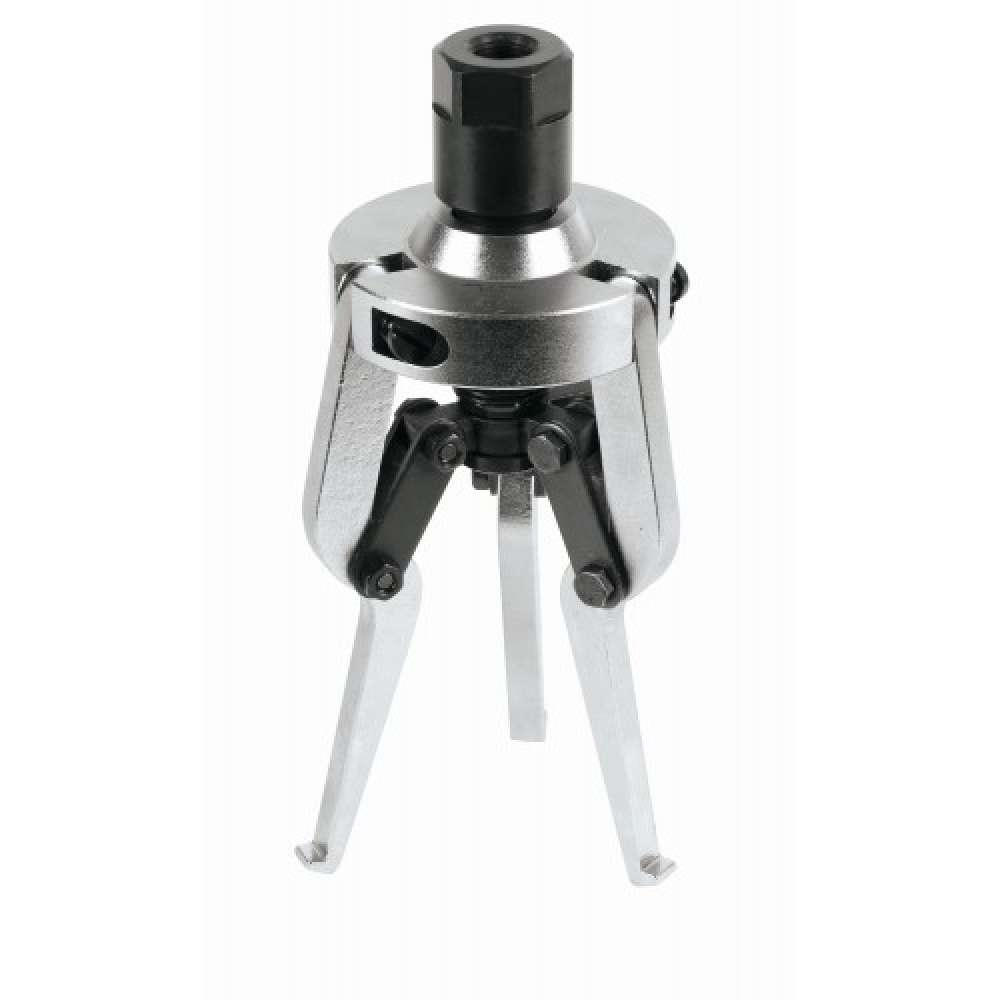

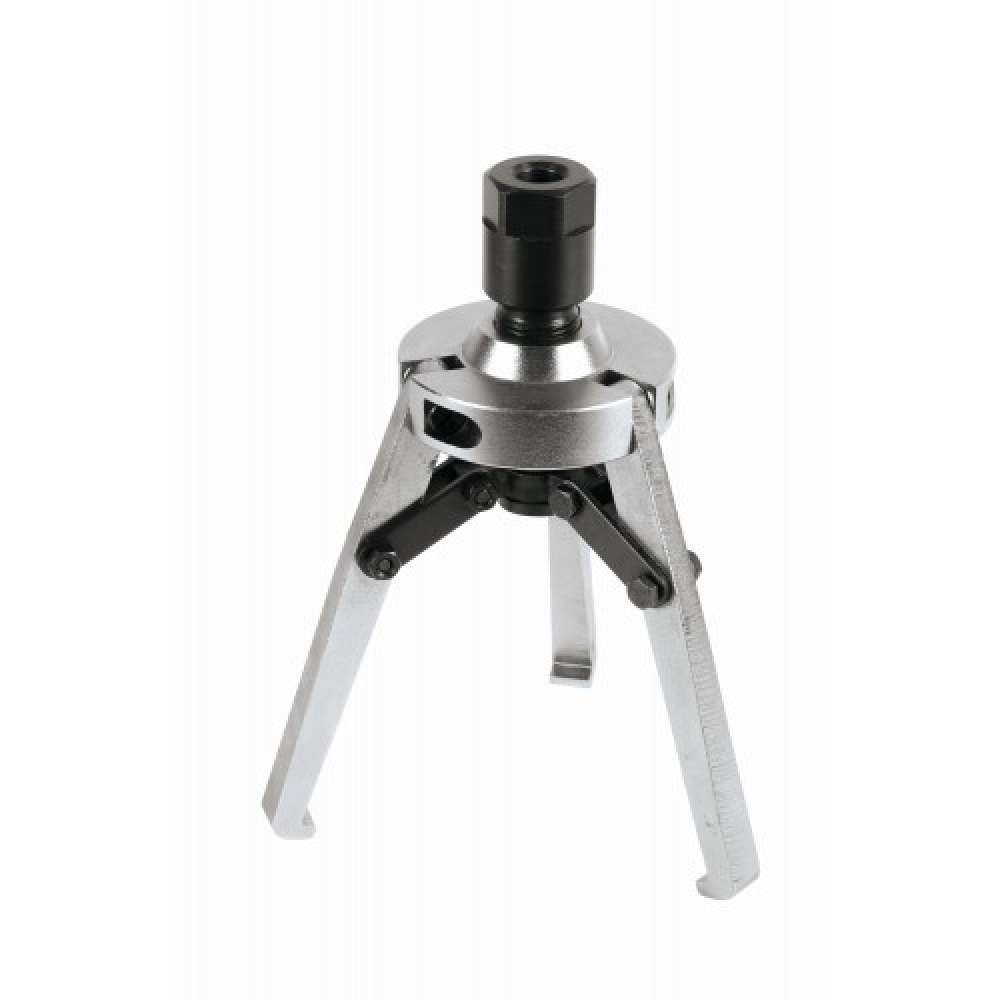

The 4704 Series Indoor/Outdoor Extractor with Impact Bar is a versatile and robust tool designed for both indoor and outdoor extraction tasks.
This extractor includes two sets of legs, allowing it to be mounted in both 2- and 3-leg configurations, providing flexibility depending on job needs.

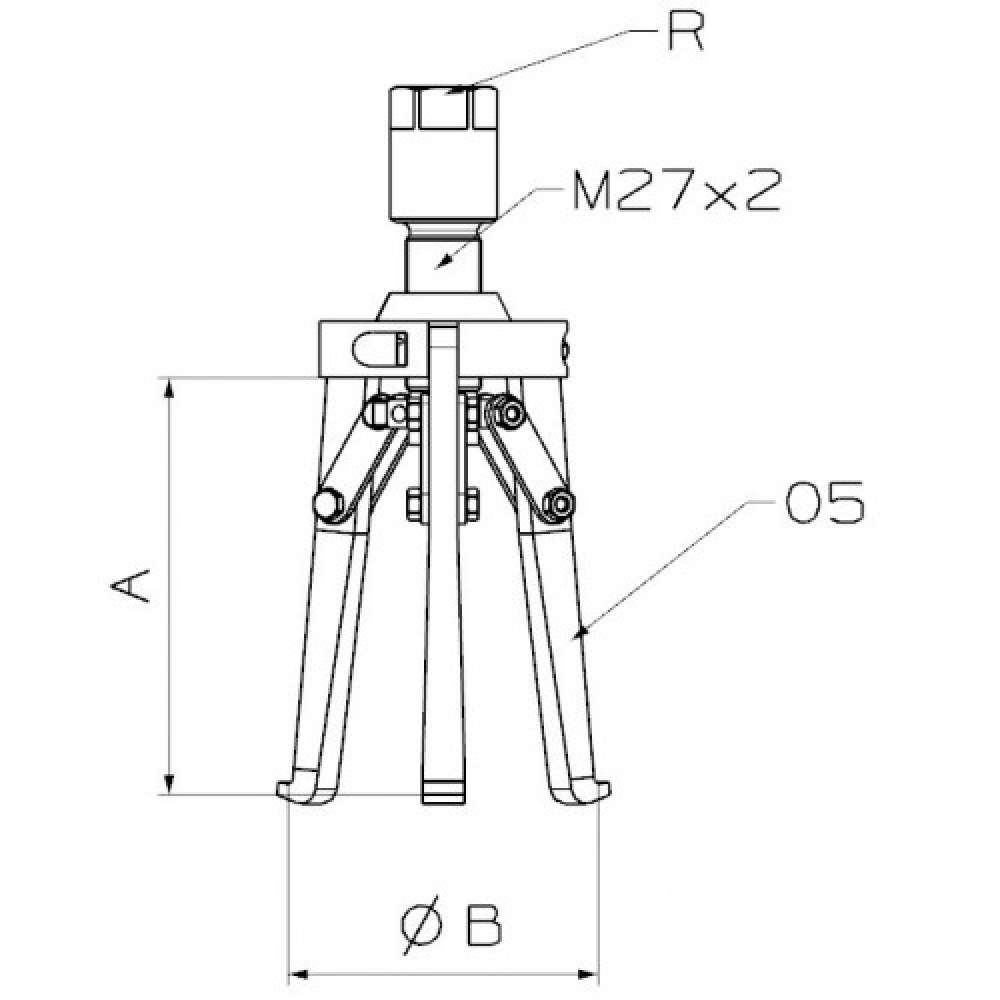

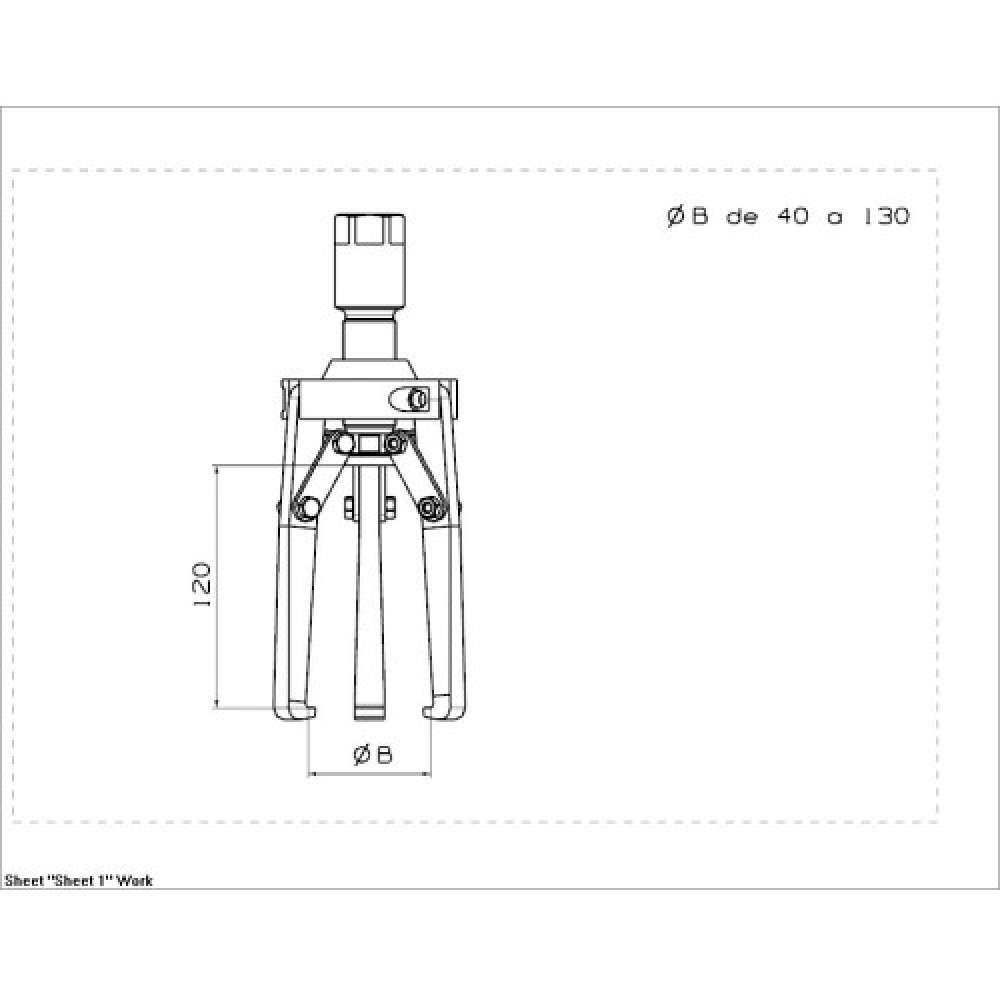

Model 470405 is intended for external extraction in diameters ranging between 40 mm and 130 mm, and for internal extraction in diameters from 95 mm to 150 mm.

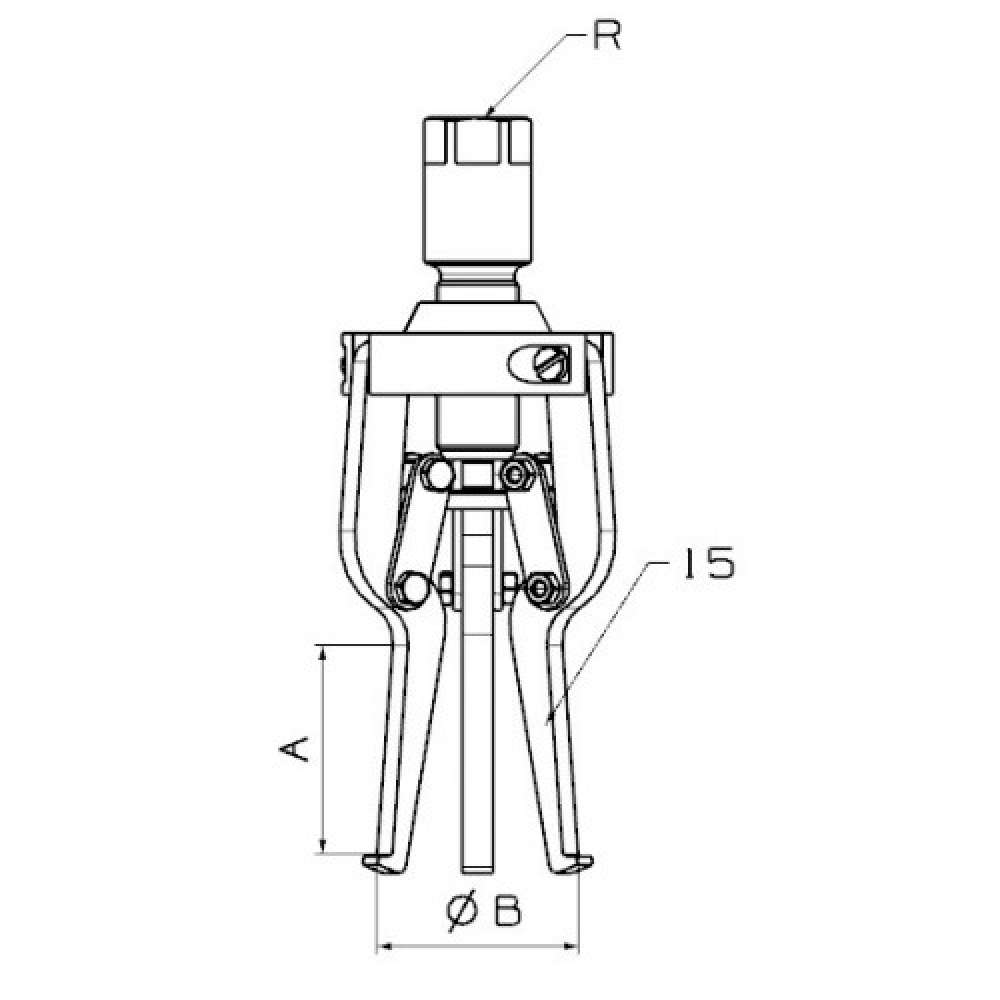

On the other hand, model 470415 is ideal for internal extraction in diameters ranging from 45 mm to 97 mm.

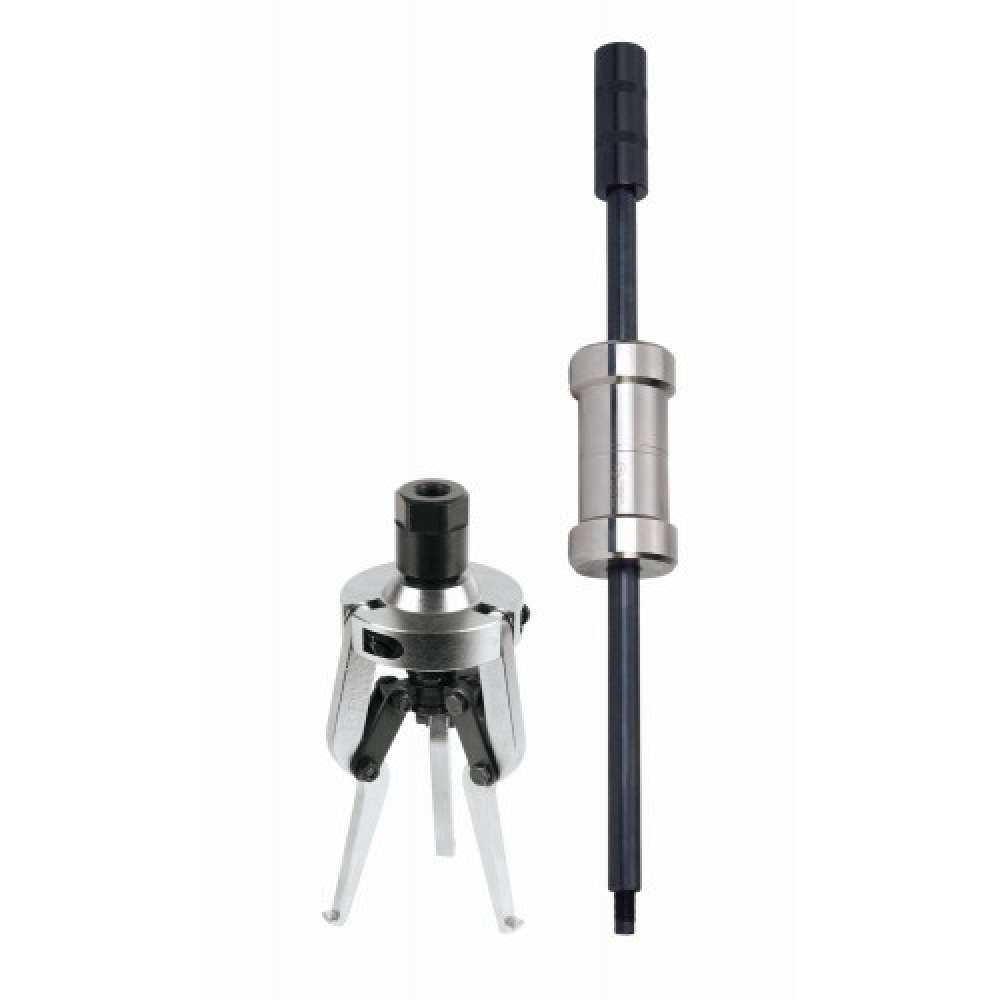

The extractor also has two extraction systems: an impact bar, available in two versions (4394 2 kg included and 4396 5 kg optional) and a 1110 bridge that does not require additional adapters.
This product is especially useful for removing cylinder liners and has a self-centering system that facilitates automatic centering of the legs, guaranteeing a firm and secure grip during use.

Recommendations for use:
Check the diameter of the part to be removed to select the appropriate set of legs.
Assemble the puller making sure the legs are properly aligned and centered before applying pulling force.
Use the included 4394 (2kg) impact bar for tasks requiring less force; opt for the 4396 (5 kg) for more difficult extractions.
For cylinder liners, make sure the puller is properly centered to avoid damage to the cylinder walls.
In exterior applications, use leg set 470405 for optimal grip at the specified diameter.

Maintenance recommendations:
After each use, clean the legs and contact surfaces to prevent the build-up of dirt and debris that may affect performance.
Periodically lubricate the moving parts of the puller to ensure smooth operation and extend the life of the tool.
Store the extractor in a dry and protected place to avoid corrosion and keep metal surfaces in optimal condition.
