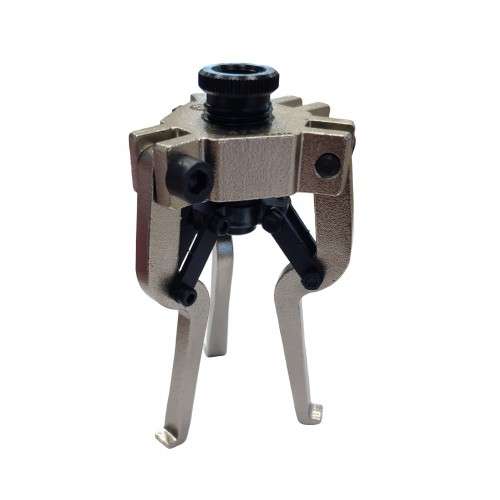

The Series 4702 Indoor/Outdoor Extractor with Impact Bar is a versatile, rugged tool designed to perform extractions in both indoor and outdoor applications.
This extractor includes two sets of legs that allow it to be configured to work with different diameters.
The 470205 leg is designed for exterior extractions in diameters up to 75 mm and for interior extractions in diameters ranging between 60 and 100 mm.
On the other hand, the 470215 leg is ideal for internal extractions in diameters ranging from 25 mm to 60 mm.
The flexible mounting system allows the extractor to be used with 2 or 3 legs, depending on the specific needs of the task.
Additionally, this kit includes a 1kg impact bar (model 4390), which makes operation easier, especially in situations where a controlled impact is necessary to free tight parts.
The self-centering system ensures precise and automatic centering of the legs, ensuring a firm and secure grip during extraction, reducing the risk of damage to parts and improving work efficiency.

Recommendations for use:
Before starting removal, be sure to select the appropriate set of legs based on the diameter and type of application (indoor or outdoor).
Check that the legs are firmly mounted and centered using the self-centering system for optimal grip.
Use the included impact bar to apply controlled force, especially in situations where parts are tightly fitted.
When using the puller in 3-leg configurations, be sure to evenly distribute force to avoid misalignment.
After removal, check the removed parts to ensure they have not been damaged during the process.

Maintenance recommendations:
Clean the extractor regularly, especially after each use, to remove grease, dust or metal particles that could affect its operation.
Lubricate moving parts of the extractor to ensure smooth movement and prevent premature wear.
Store the extractor in a dry and safe place, away from moisture, to prevent corrosion and prolong the life of the equipment.
