FORZA SELF-CENTERING HYDRAULIC EXTRACTOR WITH COMPACT SPINDLE SERIES 1315ATH

FORZA SELF-CENTERING HYDRAULIC EXTRACTOR WITH COMPACT SPINDLE SERIES 1315ATH

The 1315ATH Series Compact Spindle Self-Centering Hydraulic Puller is a high-capacity tool designed to facilitate the removal of tight-fitting parts in mechanical applications.
With a capacity of 15 tons, this extractor with 3 self-centering legs guarantees a firm and balanced grip thanks to its innovative self-centering system.
The legs of the extractor are available in three sizes: normal with 2 holes, long L with 3 holes, and extra long X with 4 holes, allowing great versatility in use.
The compact spindle is operated by a sub-spindle that is adjusted with a 17mm open-end wrench, ensuring precise and secure tightening.
This model incorporates an advanced hydraulic system that significantly reduces the effort required for extraction, and a safety pin that protects the spindle from overloads.
Additionally, the three-leg design provides balanced support that improves stability and efficiency during operation.

Recommendations for use:
Always use a 17 mm open-end wrench to adjust the sub-spindle, avoiding the use of spanners or levers that could damage the equipment.
Be sure to select the appropriate leg size based on the application for optimal grip.
Verify that the extractor is properly aligned and centered before beginning operation to avoid damage to the part or equipment.
During operation, apply hydraulic pressure gradually to control the extraction force and avoid overloading.
Perform preliminary grip tests to ensure that the legs are firmly gripped before applying full force.

Maintenance recommendations:
Regularly clean the extractor legs and spindle to remove debris that may affect its operation.
Periodically lubricate the spindle and hydraulic system to maintain optimal performance and extend the life of the equipment.
Inspect the safety pin before each use to ensure that it is in good condition and functioning properly.

Bullet points

  • Versatility in use: With adjustable legs in three different sizes, the extractor adapts to various needs and part sizes, making it ideal for multiple applications.
  • Improved efficiency: The advanced hydraulic system allows extractions to be performed with less physical effort, increasing work efficiency and reducing operating time.
  • Greater safety: The integrated safety pin prevents overloading of the spindle, protecting both the user and the equipment during use.
  • Precision and control: The self-centering system ensures that the legs align automatically, guaranteeing a uniform grip and reducing the risk of damage to the piece.
FORZA SELF-CENTERING HYDRAULIC EXTRACTOR WITH COMPACT SPINDLE SERIES 1315ATH reference list
manual FORZA SELF-CENTERING HYDRAULIC EXTRACTOR WITH COMPACT SPINDLE SERIES 1315ATH Download

FORZA SELF-CENTERING HYDRAULIC EXTRACTOR WITH COMPACT SPINDLE SERIES 1315ATH reference list

Ref. Weight Price A (Useful leg height)B (Maximum opening) Sparepart Accessories Buy
1315ALTH 32Kg 1.114,90 € 385480
1315ATH 29Kg 1.059,10 € 265425
1315AXTH 35Kg 1.173,70 € 500540

Related products

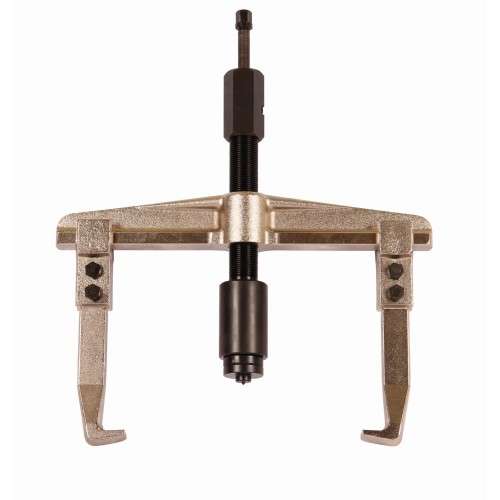

FORZA HYDRAULIC EXTRACTOR WITH COMPACT SPINDLE SERIES 2400H

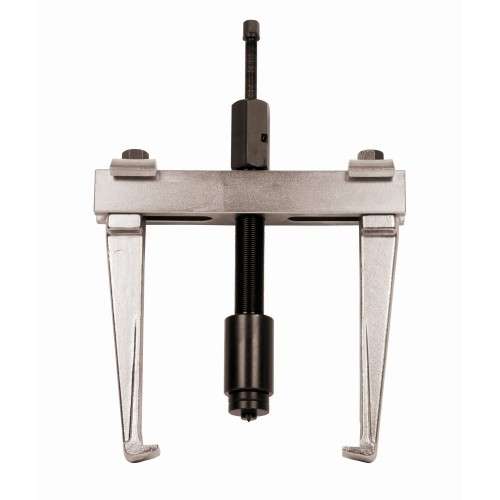

FORZA HYDRAULIC EXTRACTOR WITH COMPACT SPINDLE SERIES 1016H

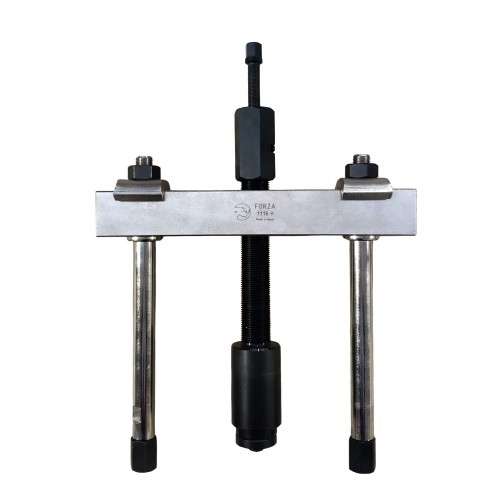

FORZA HYDRAULIC EXTRACTOR WITH EXTENSIONS AND COMPACT SPINDLE SERIES 1116H

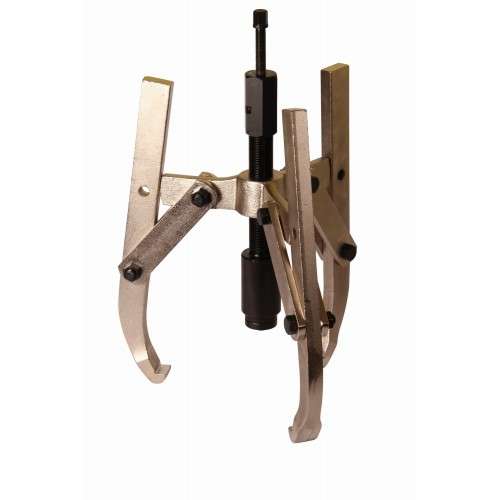

FORZA HYDRAULIC EXTRACTOR WITH COMPACT SPINDLE SERIES 1315TH

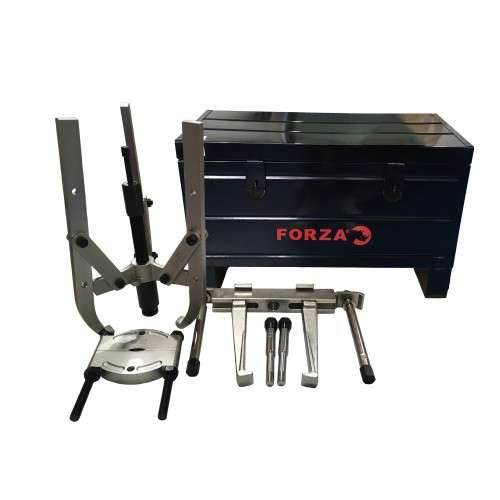

COMPACT HYDRAULIC SPINDLE SETS C1015
