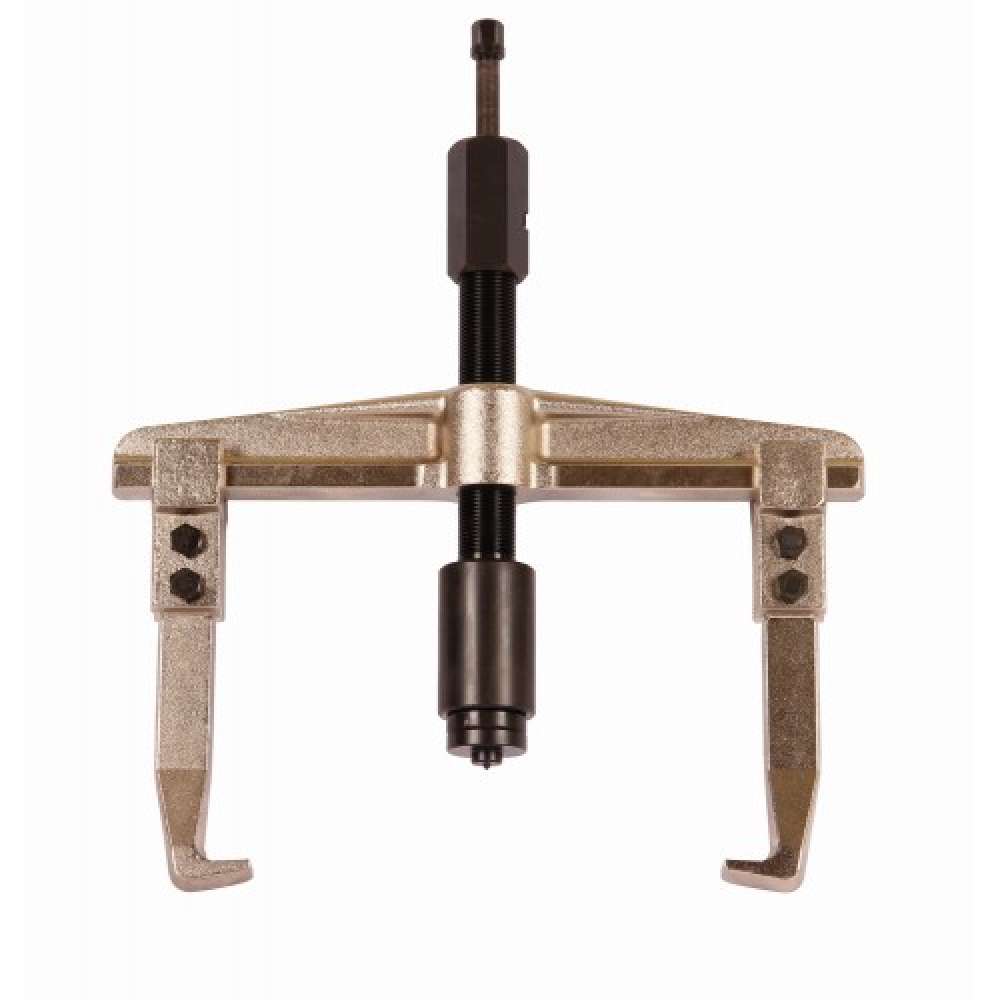

The 2400H Series Compact Spindle Hydraulic Extractor is a robust and versatile tool designed for the extraction of mechanical components with a capacity of 15 tons.
This extractor features two rigid legs, ideal for outdoor and occasionally indoor applications.
The claws are forged with flanges and screws that ensure a secure and precise hold during operation.
The spindle, with a hexagonal head, allows efficient tightening using a 17 mm open-end wrench, which facilitates operation and ensures effective extraction.
It is important to note that wrenches or levers should not be used to avoid damage and ensure proper operation of the equipment.
The integrated hydraulic system allows for faster extraction with less effort, improving work efficiency.
Additionally, the force is applied directly to the body of the extractor, which increases the rigidity and precision of the extraction process.
The design of this extractor also allows for faster assembly, reducing setup time and increasing productivity.
To ensure safety during use, the extractor has a safety pin that prevents overloading of the spindle, thus prolonging the useful life of the equipment and protecting the operator from possible accidents.

Recommendations for use
Only use a 17 mm open-end wrench to tighten the sub-spindle, avoiding the use of inappropriate tools such as wrenches or levers.
Verify that the claws are correctly attached to the piece before starting the operation to ensure accurate extraction.
Operate the hydraulic system gradually to avoid applying excessive force suddenly.
Use the extractor on flat and stable surfaces to ensure safety and work effectiveness.
Visually inspect the extractor before each use to identify any damage or wear to parts.

Maintenance recommendations
Clean the extractor after each use to remove debris and prevent dirt buildup on moving parts.
Periodically check the hydraulic system, including the oil level, to ensure proper functioning and avoid leaks.
Store the extractor in a dry place protected from humidity to prevent rust and prolong its useful life.
