HYDRAULIC ASSEMBLY OF EXTENSIONS AND JAWS MECHANICAL PART FORZA SERIES 1100H

HYDRAULIC ASSEMBLY OF EXTENSIONS AND JAWS MECHANICAL PART FORZA SERIES 1100H

The 1100H series hydraulic extension and leg assembly is a robust and versatile solution designed specifically to facilitate and secure the pulley removal process without damaging them.
This set integrates perfectly with the 3100H series hydraulic extractors, which, when combined with the 1200 series guillotines, become the safest and most efficient option for performing precise extractions in industrial applications.
The 1100H series extractors are designed to be used with false legs, allowing greater versatility and adaptability in different work situations.
In addition, they serve as a support bridge for the interior extractors of the 1500 and 4700 series, thus expanding their functionality.
This set also includes a point guard, designed to improve safety and efficiency during use, protecting both the operator and the equipment.

Recommendations for use:
Verify that the assembly is properly assembled before each use to ensure safe operation.
Always use the included point guard to prevent damage to the tool and pulley during the removal process.
Make sure the false legs are properly installed and adjusted to maintain stability during operation.
Combine the set with the 1200 series guillotines for optimal and safe extraction.
Avoid applying excessive force; Let the hydraulic system do the work to avoid damage.

Maintenance recommendations:
Clean the hydraulic assembly after each use to prevent the accumulation of dirt and dust, which could affect its operation.
Perform periodic inspections of the mechanical parts, especially the legs and extensions, for any signs of wear or damage.
Apply adequate lubrication to moving parts according to manufacturer's specifications to maintain smoothness and efficiency of motion.

Bullet points

  • Versatility: The set is compatible with different series of extractors and guillotines, allowing its use in a wide range of industrial applications.
  • Enhanced Safety: The included point guard ensures safe operation, protecting both the equipment and the user from potential damage.
  • Saving time and effort: By allowing safe and efficient extraction of pulleys, the set reduces the time necessary to perform these operations, minimizing the physical effort required.
  • Equipment Protection: By using this set, damage to pulleys and other components is avoided, which prolongs the life of the parts and equipment in general.
HYDRAULIC ASSEMBLY OF EXTENSIONS AND JAWS MECHANICAL PART FORZA SERIES 1100H reference list
manual HYDRAULIC ASSEMBLY OF EXTENSIONS AND JAWS MECHANICAL PART FORZA SERIES 1100H Download

HYDRAULIC ASSEMBLY OF EXTENSIONS AND JAWS MECHANICAL PART FORZA SERIES 1100H reference list

Ref. Weight Price A (Useful leg height)B (Maximum opening)B (Minimum Opening)C (Body width)A (Useful jaw height)TONA (Altura útil de pata)B (Apertura máxima)B (Apertura mínima)C (Anchura del cuerpo) Sparepart Accessories Buy
1110H 7.3Kg 397,40 € 30026011528030012300260115280
1118H 14Kg 654,90 € 26534514037026520265345140370
1130H 36Kg 1.236,50 € 28444018048028430284440180480
1152H 70.5Kg 2.162,90 € 44758022061544750447580220615
1195H 168.3Kg 3.858,00 € 600700340760600100600700340760

Related products

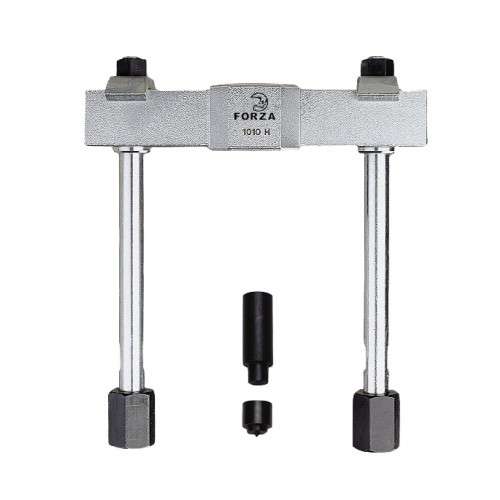

SOLID CYLINDER HYDRAULIC ASSEMBLY FORZA 1100 HF SERIES MECHANICAL PART OF EXTENSIONS

FORZA SERIES 3000HF TWO JAWS COMPLETE SOLID CYLINDER HYDRAULIC EXTRACTOR ASSEMBLY

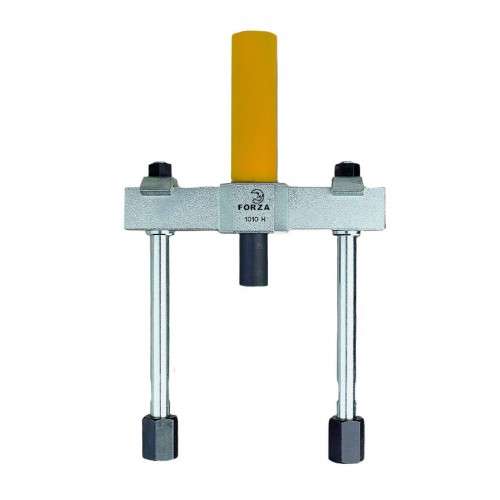

FORZA 3100HF SERIES COMPLETE SOLID CYLINDER HYDRAULIC EXTRACTOR ASSEMBLY OF EXTENSIONS
