FORZA HYDRAULIC PULLER WITH EXTENSIONS SERIES 1108H

FORZA HYDRAULIC PULLER WITH EXTENSIONS SERIES 1108H

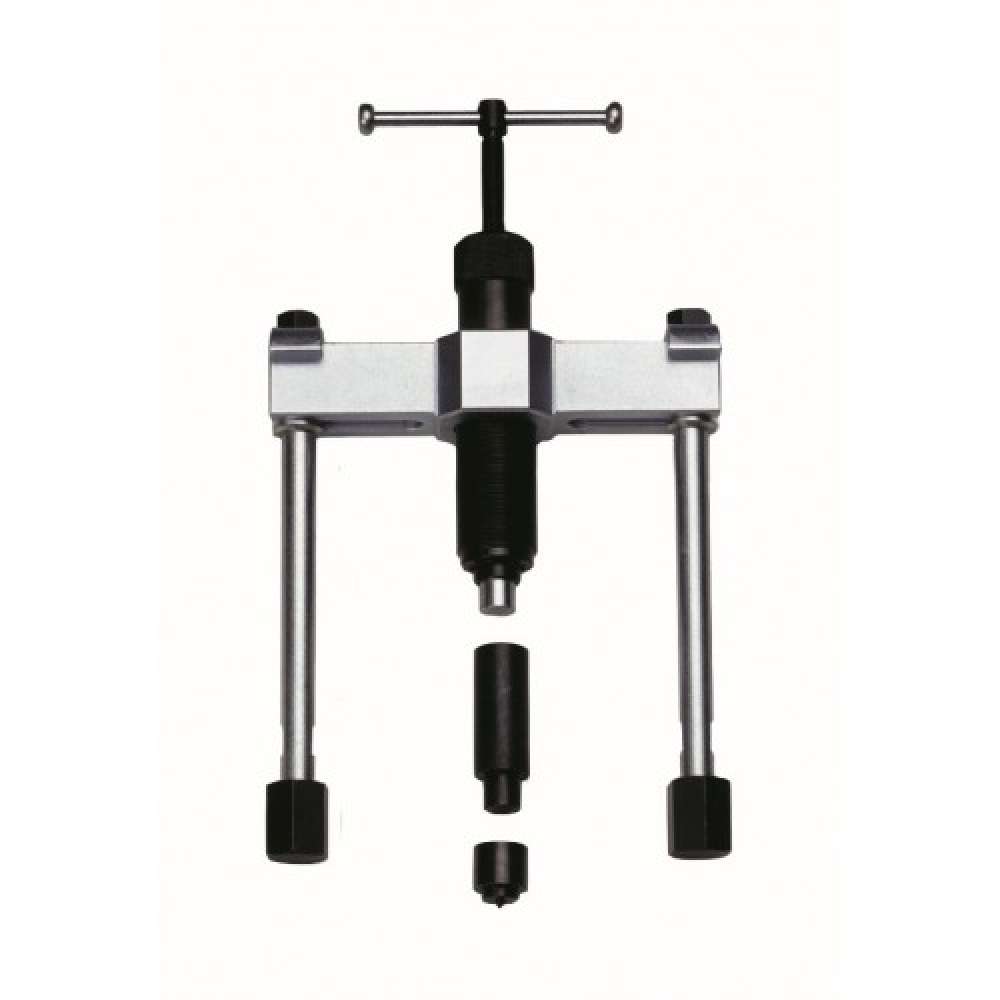

The 1108H Series Hydraulic Extractor is a heavy-duty tool designed to perform extractions of up to 8 tons of force, ideal for applications where it is required to remove parts such as pulleys or gears efficiently and safely.
This extractor is characterized by including two extensions, which allows greater flexibility and adaptability in different work situations.
Its hydraulic system is optimized to provide faster removal with minimal effort, eliminating the need for additional wrenches or levers.

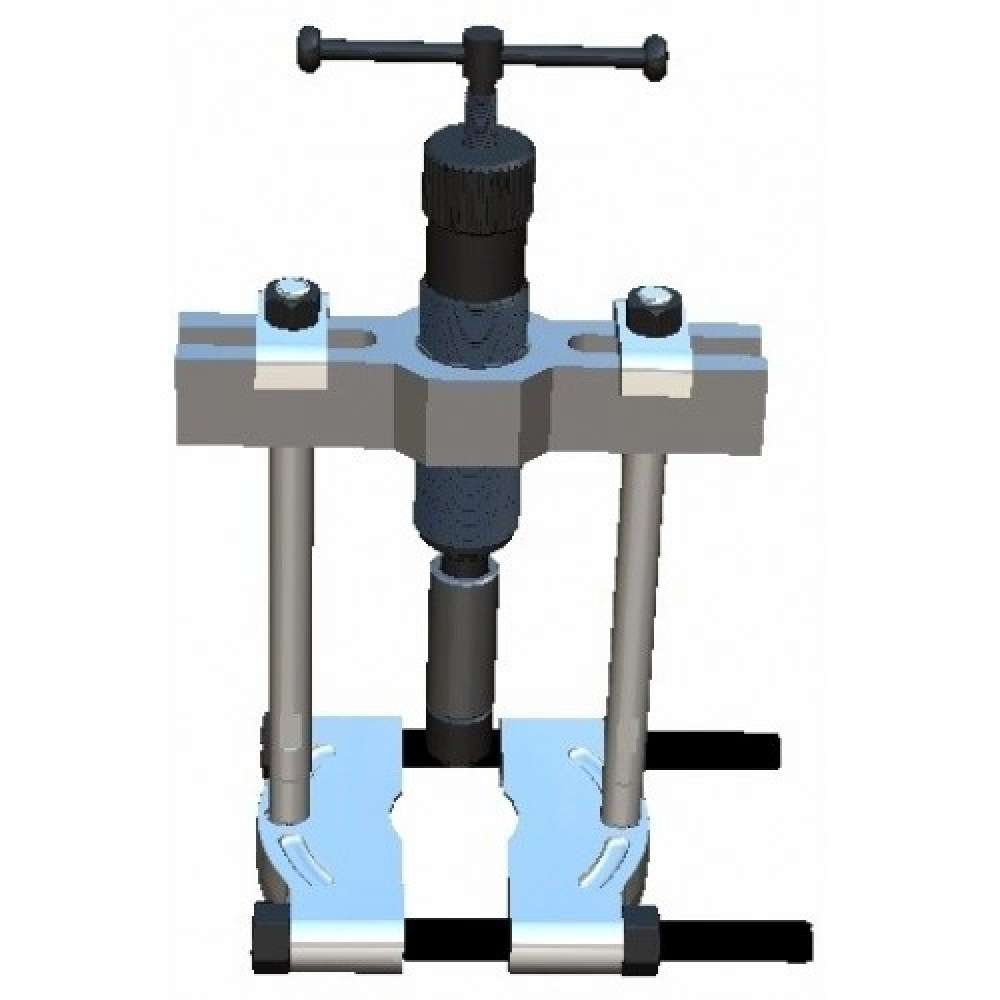

Additionally, this puller is compatible with 1200 series guillotines, making it a versatile tool for a variety of mechanical tasks.
A key feature of this extractor is its design that applies hydraulic force directly to the body, ensuring greater rigidity and precision during extraction.
The included manual handle facilitates the force application process, ensuring that the work is carried out in a controlled and safe manner.

Recommendations for Use
Make sure the extensions are as close to the pulley as possible to prevent bending.
Verify that the pulley is in direct contact with the extensions before beginning the extraction.
Only use the handle provided to exert hydraulic force, avoiding the use of other tools.
Perform visual inspections of the equipment before use to ensure there is no damage or wear to the extension cords.
Keep the work area free of obstructions to facilitate safe and controlled movement of the extractor.

Maintenance Recommendations
Clean the extractor after each use to prevent the build-up of debris that may affect its performance.
Lubricate moving parts periodically to ensure long, smooth operation.
Store the extractor in a dry, protected location to prevent corrosion and other damage caused by moisture.

Bullet points

  • Versatility: Compatible with 1200 series guillotines, allowing use in a wide range of mechanical applications.
  • Efficiency: The hydraulic system significantly reduces the physical effort required, allowing for quick and effective extraction.
  • Time Savings: Hydraulic operation facilitates faster extractions, reducing the time needed to complete complex tasks.
  • Increased Safety: By avoiding the use of additional tools such as wrenches or levers, the risks of accidents during operation are minimized.
FORZA HYDRAULIC PULLER WITH EXTENSIONS SERIES 1108H reference list
manual FORZA HYDRAULIC PULLER WITH EXTENSIONS SERIES 1108H Download

FORZA HYDRAULIC PULLER WITH EXTENSIONS SERIES 1108H reference list

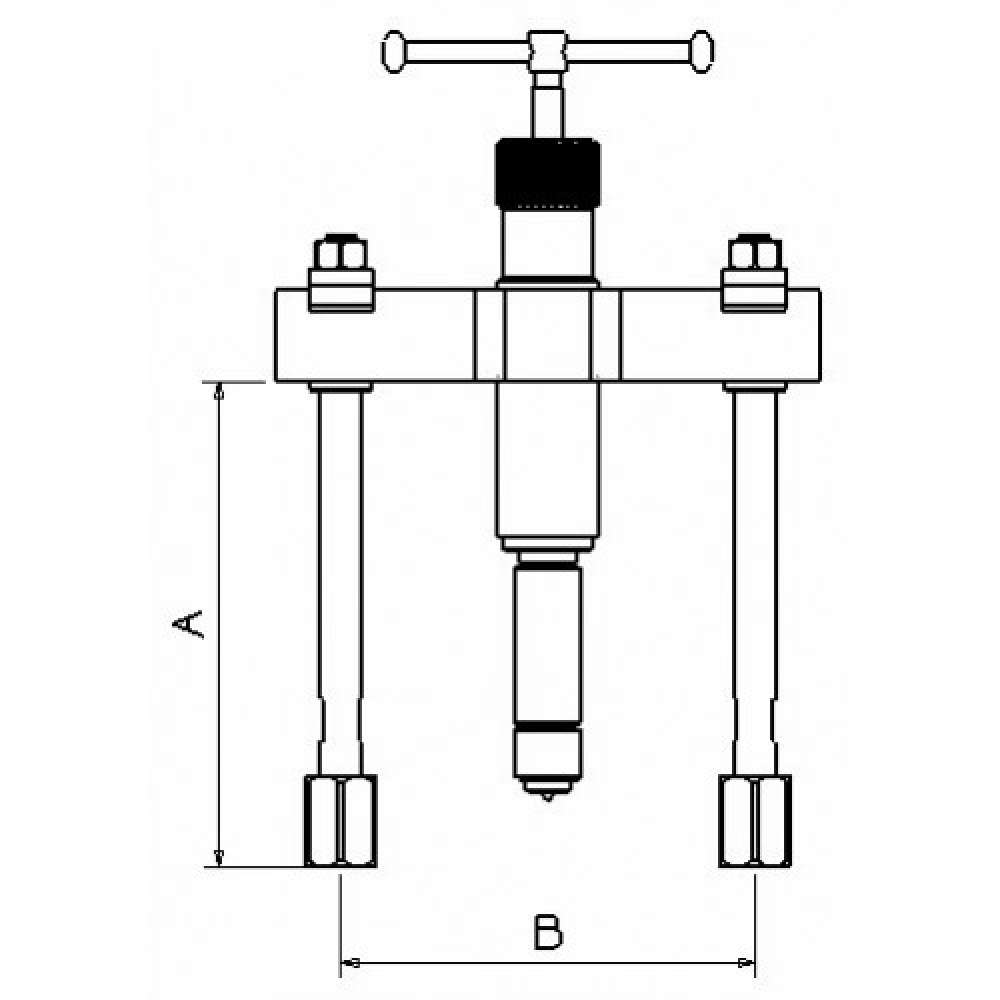

Ref. Weight Price A (Useful leg height)B (Maximum opening)C (Body width)CombinesCombine Sparepart Accessories Buy
1108AH 4.8Kg 426,60 € 1902502601204B1204B
1108H 4.3Kg 406,60 € 1902002101206B1206B
