FORZA INTERIOR MECHANICAL EXTRACTOR BRIDGE SERIES 4392

FORZA INTERIOR MECHANICAL EXTRACTOR BRIDGE SERIES 4392

The Series 4392 Internal Mechanical Extractor Bridge is a high-precision, high-strength tool designed to perform mechanical extractions in industrial and automotive applications.
This extractor bridge is compatible with the 4300 and 4400 series interior forceps, making it a versatile solution for different extraction needs.
With a higher extraction force compared to traditional impact bars, this bridge ensures superior performance in situations requiring additional force for the removal of interior components.
Additionally, it features three-position adjustable legs, allowing the user to adapt to different openings and component sizes, ensuring a perfect fit and efficient removal.

Recommendations for use:
Make sure the 4300 or 4400 series collets are properly installed before beginning removal.
Adjust the bridge legs to one of three available positions depending on the size of the component you are removing.
Apply removal force gradually to avoid damage to the component or tool.
Verify that the bridge is properly aligned with the component before applying removal force.
Use appropriate personal protective equipment, such as gloves and goggles, during the removal process.

Maintenance recommendations:
Clean the extractor bridge after each use to prevent the build-up of dirt or debris that could affect its operation.
Regularly lubricate moving parts of the bridge to ensure smooth operation and extend tool life.
Store the puller bridge in a dry, safe location, away from moisture and other elements that may cause corrosion or damage.

Bullet points

  • Versatility: A single bridge is compatible with all 4300 and 4400 series collets, simplifying operations and reducing the need for additional tools.
  • Efficiency: Provides greater extraction force compared to the impact bar, making it easier to remove components that would otherwise be difficult to remove.
  • Reduced physical effort: By offering greater extraction force, the user requires less physical effort, which reduces fatigue and improves productivity.
  • Time Savings: The ability to adjust the legs to three different positions allows for a faster and more accurate removal process, reducing work time.
FORZA INTERIOR MECHANICAL EXTRACTOR BRIDGE SERIES 4392 reference list
manual FORZA INTERIOR MECHANICAL EXTRACTOR BRIDGE SERIES 4392 Download

FORZA INTERIOR MECHANICAL EXTRACTOR BRIDGE SERIES 4392 reference list

Ref. Weight Price AToHeightThreadConectionConnectionMaximum openingUseful leg heightBody width Sparepart Accessories Buy
4392 1.5Kg 129,30 € 1381381241/2"20h1/2"20h1/2"20h138124130

Related products

FORZA SERIES 4390 IMPACT BAR EXTRACTOR

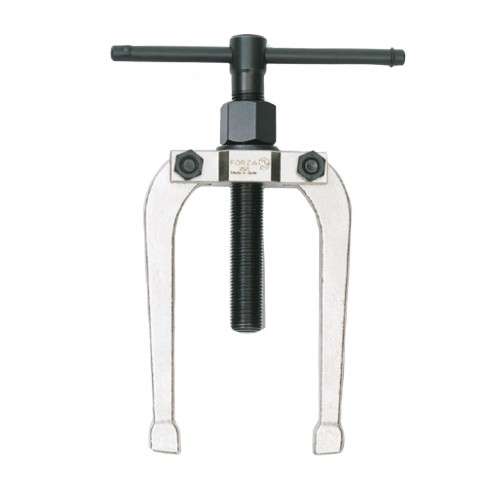

FORZA 2500 SERIES INTERIOR MECHANICAL EXTRACTOR BRIDGE

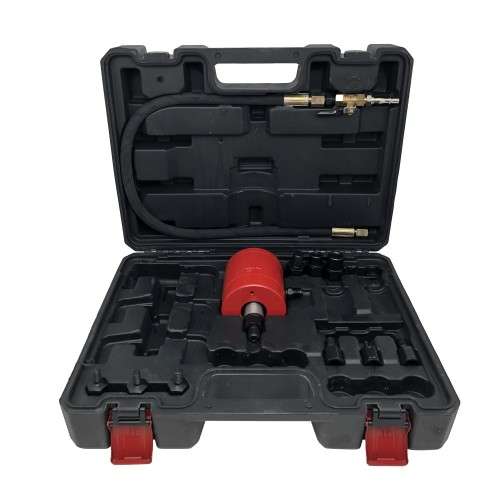

FORZA PNEUMATIC IMPACT KIT FOR EXTRACTION

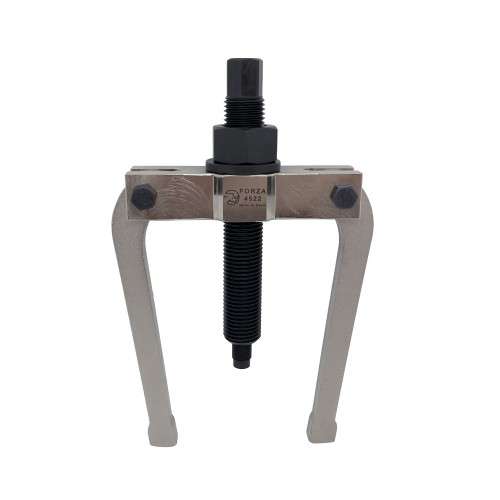

FORZA 4500 SERIES INTERIOR MECHANICAL EXTRACTOR BRIDGE
