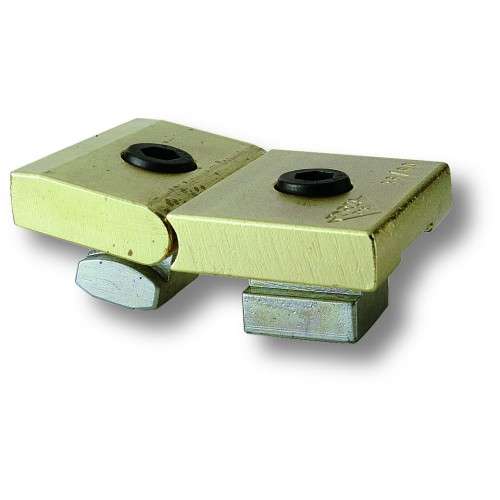

FORZA SERIES 36 FLAT JAW SET

FORZA SERIES 36 FLAT JAW SET

The Series 36 Flat Jaw Set is a high-precision clamping solution specifically designed to secure very low height parts in machining processes.
This set includes four units, each equipped with a tilting jaw that facilitates the secure grip of flat and large-surface workpieces, such as plates, on machining machines.
Its robust and versatile design ensures a firm and stable grip, even under intense working conditions, making it an essential component for workshops and factories that require precision and stability when processing large plates and other flat components.
These jaws are ideal for applications that require precise alignment and uniform grip, ensuring the quality and accuracy of the work performed.

Recommendations for use:
Verify that the piece to be clamped is clean and free of debris that could interfere with the grip.
Adjust the jaw so that the tilt jaw is aligned with the surface of the workpiece to ensure an even grip.
Use the jaws together to distribute clamping force evenly over the surface of the workpiece.
Ensure the machine is properly calibrated before starting the machining process to ensure maximum precision.
Periodically check the condition of the jaws to identify any wear or damage that could affect their performance.

Maintenance recommendations:
Clean the jaws after each use to remove any material residue that may accumulate and affect their operation.
Lubricate the moving parts of the jaw regularly to maintain smooth movement and prevent premature wear.
Inspect the jaws periodically for signs of wear or damage, and make any necessary repairs or replacements to maintain optimal performance.

Bullet points

  • Gripping versatility: Thanks to its tilting mouth, the jaws can firmly hold pieces of various heights and thicknesses, offering a reliable hold in situations where other tools might fail.
  • Robust and durable design: Made with high-resistance materials, the jaws are designed to withstand conditions of intensive use, guaranteeing a long useful life and maintaining optimal performance over time.
  • Greater precision at work: The flat jaw design allows for a secure and stable grip, which reduces the risk of unwanted movement of the part during machining, improving the quality of the final finish.
  • Optimization of work time: By facilitating the clamping of flat and large pieces, the user can perform the job faster and more efficiently, reducing preparation times and ensuring consistent results.

FORZA SERIES 36 FLAT JAW SET reference list

See more
Ref. Weight Price A (Support width)B (Width)B (Height)C (Width)D (Length) Sparepart Accessories Buy
36/60 2.3Kg 344,80 € 15,512126075
36/64 4Kg 386,80 € 17,5151560105
36/65 4.3Kg 394,80 € 19,5151560105
36/66 4.6Kg 420,40 € 21,5151560105
36/78 8.1Kg 535,20 € 17,5151580125
36/79 7.2Kg 543,20 € 19,5151580125
36/80 7.1Kg 574,80 € 21,5151580125
