NON-GUIDED STRAIGHT MOUTH FORCE JAW

NON-GUIDED STRAIGHT MOUTH FORCE JAW

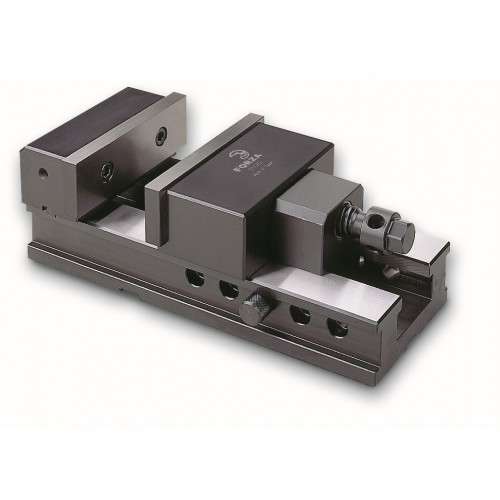

The Unguided Straight Jaw Jaw is a mechanical device designed to securely hold parts during machining processes.
This vice stands out for its guideless design, which allows better clamping of irregular pieces, ensuring that they do not lift during adjustment thanks to the specific attack of the spindle.
Interchangeable clampings make this vice extremely versatile, allowing the jaw to adapt to different part shapes and sizes, which is essential in applications where precision is critical.
In addition, the possibility of incorporating a rotating base offers greater flexibility, allowing angle adjustments without having to release the piece, thus optimizing time and work efficiency.

Recommendations for use
Be sure to select the correct torques for the type of part you are clamping, ensuring a secure fit.
Check that the vice is securely fixed to the base or workbench before starting work, to avoid slipping.
Take advantage of the swivel base to adjust the angle of the piece without having to completely release it, making it easy to make precise cuts or drilling.
Use the vice to grip irregular parts that might not fit well in traditional guided jaws, improving work quality.
Do not overtighten the spindle as this could deform the part or cause premature wear on the jaw.

Maintenance recommendations
Periodically lubricate the spindle and moving parts of the jaw to ensure smooth operation and prolong their life.
Inspect interchangeable clamps regularly and replace them if they show signs of wear or damage, to maintain fit accuracy.
Clean the jaw after each use to prevent the buildup of material residue, which could interfere with its operation and cause corrosion over time.

Bullet points

  • Versatility: The vice has interchangeable clamps, which allows its use to be adapted to different types of parts, thus increasing its functionality in the workshop.
  • Precision in adjustment: Thanks to its guideless design, the jaw prevents lifting of the pieces during tightening, which ensures a firmer and more precise hold.
  • Greater safety at work: The clamp ensures that parts are held firmly in place, reducing the risk of accidents during machining.
  • Time Savings: By preventing parts from lifting and allowing quick adjustments with its rotating base, the user can perform their work more efficiently and with fewer interruptions.
NON-GUIDED STRAIGHT MOUTH FORCE JAW reference list
manual NON-GUIDED STRAIGHT MOUTH FORCE JAW Download

3D Documents and drawings You must register to access

Enter

NON-GUIDED STRAIGHT MOUTH FORCE JAW reference list

Ref. Weight Price CFA (Length)B (Distance between jaws)D (Base height)H (Width)MClampsKeywaysBaseJB (Maximum mouth distance)FlangesJ. Sparepart Accessories Buy
29/100 10.1Kg 705,00 € 349025010937100501256112B/100701091256170
29/100L 9.1Kg 766,00 € 349029615037100501256112B/100701501256170
29/125 14.1Kg 810,20 € 4011030013042125641256112B/125881301256188
29/125L 14.6Kg 872,30 € 4011034617542125641256112B/125881751256188
29/125S 14.9Kg 935,90 € 4011037120042125641256112B/125882001256188
29/150 29Kg 1.184,70 € 5613540220051150841506116B/15011520015061115
29/150L 27Kg 1.269,10 € 5613545225051150841506116B/15011525015061115
29/150S 30.7Kg 1.452,60 € 5613550330051150841506116B/15011530015061115
29/150X 31.8Kg 1.597,20 € 5613552833551150841506116B/15011533515061115
29/175 34Kg 1.330,30 € 58.513543222556175861506116B/15012022515061120
29/175L 36.5Kg 1.421,10 € 58.513548227556175861506116B/15012027515061120
29/175S 40Kg 1.535,10 € 58,513555635056175861506116B/15012035015061120
29/175X 42.5Kg 1.615,80 € 58,513561040056175861506116B/15012040015061120
29/200 47Kg 1.601,90 € 65,51604702506120092.52006116B/20014525020061145
29/200L 50.5Kg 1.699,20 € 65,51605203006120092.52006116B/20014530020061145
29/200S 52.5Kg 1.913,30 € 65,51605703506120092.52006116B/20014535020061145
29/200X 58.5Kg 2.142,30 € 65,51605953756120092.52006116B/20014537520061145
29/200XL 65.5Kg 2.245,20 € 65,51606754556120092,52006116B/20014545520061145
