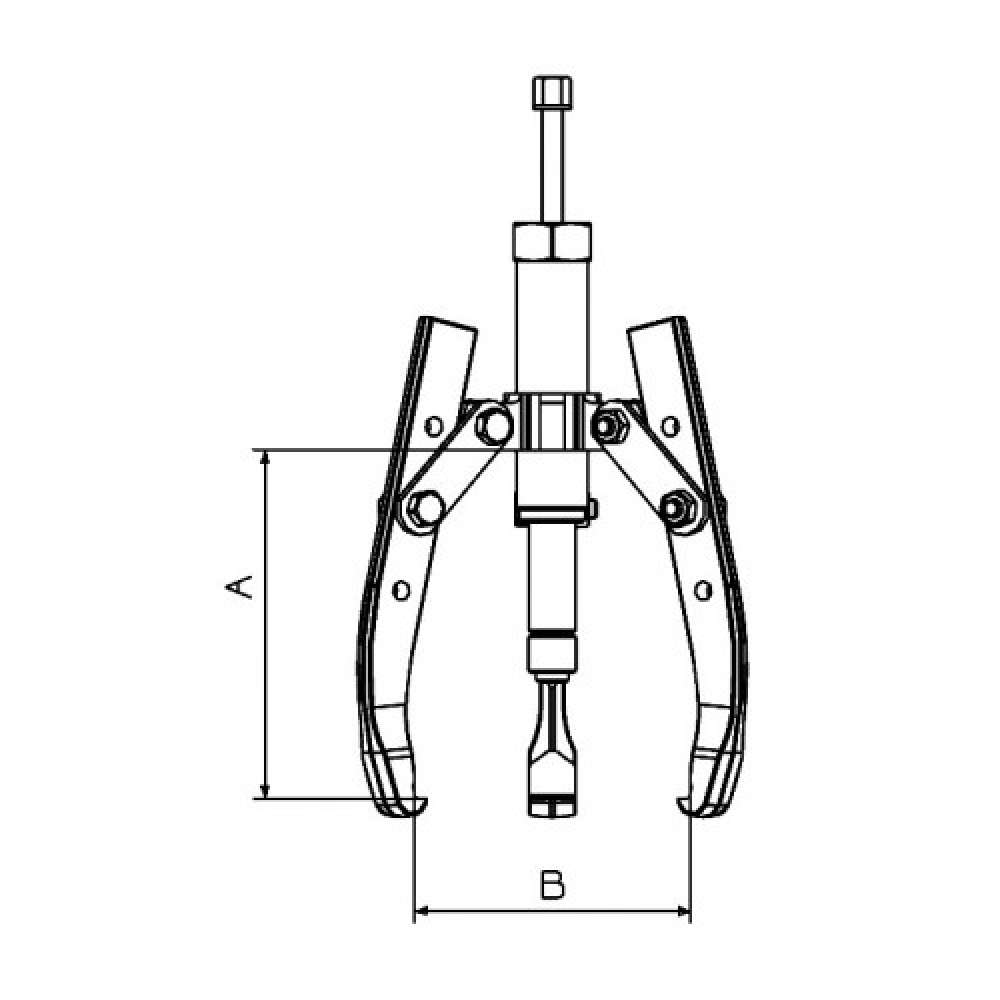

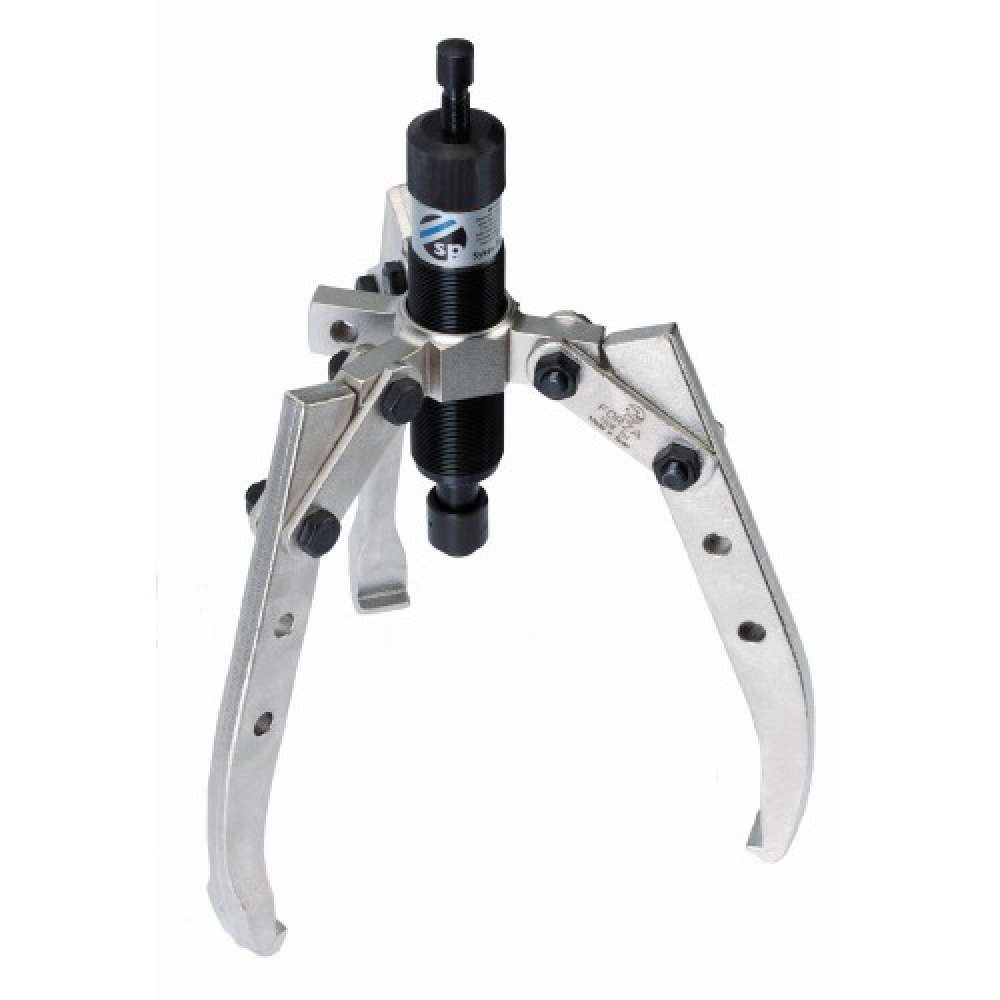

The 1312TH Series Compact Spindle Hydraulic Extractor is a high precision and efficient tool designed to perform extractions with a capacity of up to 12 tons.
Equipped with an advanced hydraulic system, this extractor makes it easy to remove mechanical components with significantly reduced effort.
Its design includes three adjustable legs, which allows extraction with greater stability and safety, adapting to various work configurations.
Furthermore, its robust construction ensures that the applied force is distributed evenly throughout the body, increasing the rigidity and effectiveness of the operation.
The integrated safety pin protects the spindle from overloads, thereby extending the life of the equipment.
Ease of use is maximized by tightening the sub-spindle with a 17mm open-end wrench, eliminating the need for additional tools such as spanners or levers, which could compromise work accuracy.
This extractor is ideal for industrial applications that require fast, efficient and safe extraction.

Recommendations for use:
Be sure to always use a 17mm open-end wrench to tighten the sub-spindle.
Do not use wrenches or pry bars as they may damage the spindle or compromise accuracy.
Verify that the legs are properly adjusted to provide adequate support before beginning removal.
Use the extractor on flat, stable surfaces to avoid unwanted movement during operation.
Avoid overloading the extractor, always respecting the maximum capacity of 12 tons.

Maintenance recommendations:
Regularly lubricate the spindle and moving parts of the hydraulic system to ensure smooth operation and prolong the life of the equipment.
Periodically inspect the safety pin to ensure that it is in good condition and working properly.
Store the extractor in a dry, clean place, protecting it from moisture and dust to prevent corrosion and other damage.
