LENOX DIAMOND CROWNS

LENOX DIAMOND CROWNS

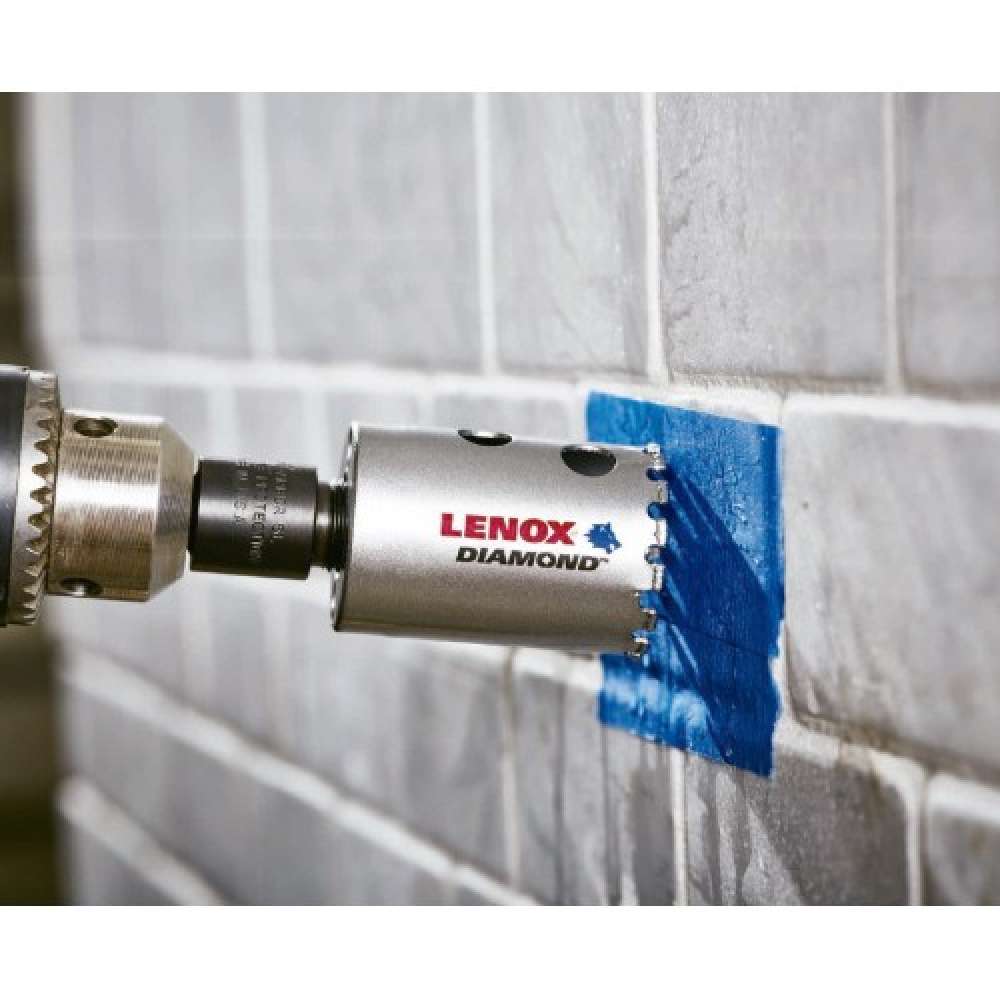

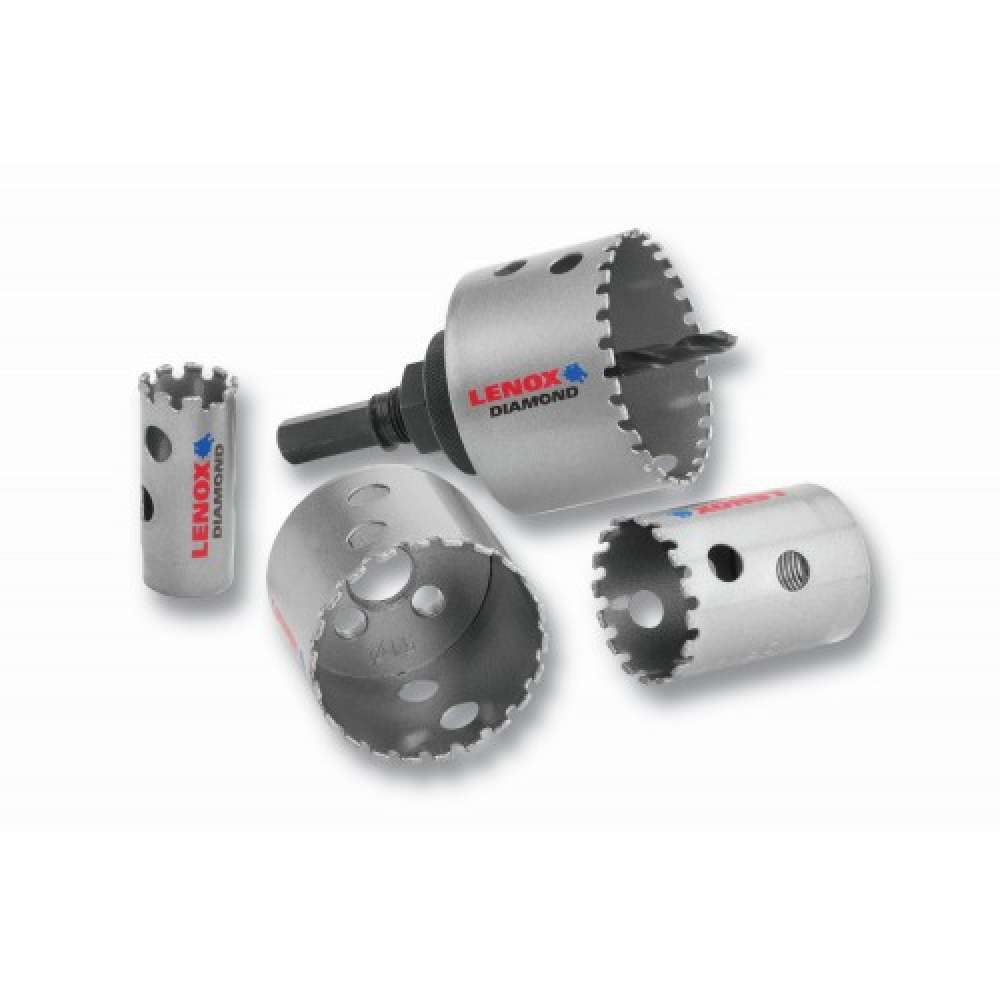

Drill bits with brazed diamond edge are high precision and durable tools, specifically designed for drilling extremely hard materials.
These crowns stand out for their ability to make clean and precise cuts in less time than other types of teeth, thanks to the effectiveness of the diamond edge.
This edge allows for continuous and efficient cutting through surfaces such as tile, granite, porcelain and cast iron, among others.
Its robust design and the incorporation of side holes not only facilitate drilling, but also simplify the extraction of scraps and chips, thus optimizing working time and reducing tool wear.
They are an ideal choice for construction and remodeling professionals, as well as for any user requiring precise drilling in high-hardness MOHS materials.
It is essential to review the instruction manual before using them, thus guaranteeing safe and effective use of the product.

Recommendations for use:
Please read and follow the instruction manual carefully before using the drill bits.
Be sure to use the appropriate tool for the type of material to be drilled, checking its MOHS hardness.
Always use personal protective equipment, such as goggles and gloves, to avoid accidents while drilling.
Drill at recommended speeds to avoid overheating the tool.
If you encounter resistance or difficulty drilling, stop and check the crown to make sure it is in good condition.

Maintenance recommendations:
Clean the crown after each use, removing any material residue or chips to prevent clogging.
Store crowns in a dry, protected location to prevent corrosion and premature wear.
Periodically check the diamond edge to ensure that it is free of wear or damage that could affect its performance.

Bullet points

  • Efficiency and speed in drilling: These drilling crowns allow hard materials to be drilled in considerably less time compared to other types of teeth, which optimizes work times.
  • Durability and precision: Thanks to the brazed diamond edge, these crowns offer long life and superior precision in each cut, maintaining their effectiveness even in extremely hard materials.
  • Time savings: Speed ​​in drilling allows projects to be completed in less time, increasing productivity.
  • Professional results: The precision of the cut guarantees a clean and professional finish, minimizing the need for later touch-ups or corrections.

LENOX DIAMOND CROWNS reference list

Ref. Weight Price DiameterStandard arborStandard treeRPM minRPM MaxMax RPM Sparepart Accessories Buy
10507823 0.1Kg 52,60 € 191L, 4L, 5L1L, 4L, 5L80012001200
10507824 0.1Kg 56,00 € 201L, 4L, 5L1L, 4L, 5L80012001200
10507825 0.1Kg 56,20 € 221L, 4L, 5L1L, 4L, 5L80012001200
10507826 0.1Kg 59,40 € 251L, 4L, 5L1L, 4L, 5L80012001200
10507827 0.1Kg 64,70 € 291L, 4L, 5L1L, 4L, 5L500900900
10507828 0.1Kg 67,30 € 322L, 3L, 6L, 7L2L, 3L, 6L, 7L500900900
10507829 0.1Kg 70,90 € 352L, 3L, 6L, 7L2L, 3L, 6L, 7L500900900
10507830 0.2Kg 79,70 € 382L, 3L, 6L, 7L2L, 3L, 6L, 7L500900900
10507831 0.1Kg 83,30 € 442L, 3L, 6L, 7L2L, 3L, 6L, 7L500900900
10507832 0.1Kg 90,50 € 482L, 3L, 6L, 7L2L, 3L, 6L, 7L400800800
10507833 0.2Kg 97,50 € 512L, 3L, 6L, 7L2L, 3L, 6L, 7L400800800
10507834 0.2Kg 104,70 € 542L, 3L, 6L, 7L2L, 3L, 6L, 7L400800800
10507835 0.2Kg 108,70 € 572L, 3L, 6L, 7L2L, 3L, 6L, 7L400800800
10507836 0.2Kg 109,80 € 602L, 3L, 6L, 7L2L, 3L, 6L, 7L200600600
10507837 0.2Kg 113,30 € 642L, 3L, 6L, 7L2L, 3L, 6L, 7L200600600
10507838 0.2Kg 122,20 € 682L, 3L, 6L, 7L2L, 3L, 6L, 7L200600600
10507839 0.3Kg 137,20 € 762L, 3L, 6L, 7L2L, 3L, 6L, 7L200600600
10507840 0.3Kg 150,30 € 832L, 3L, 6L, 7L2L, 3L, 6L, 7L150500500
10507841 0.4Kg 165,00 € 1022L, 3L, 6L, 7L2L, 3L, 6L, 7L150500500
10507842 0.5Kg 186,30 € 1142L, 3L, 6L, 7L2L, 3L, 6L, 7L150500500
